Body-side frame-parts for BMW MINI Cabrio F57 LCI One (2022)

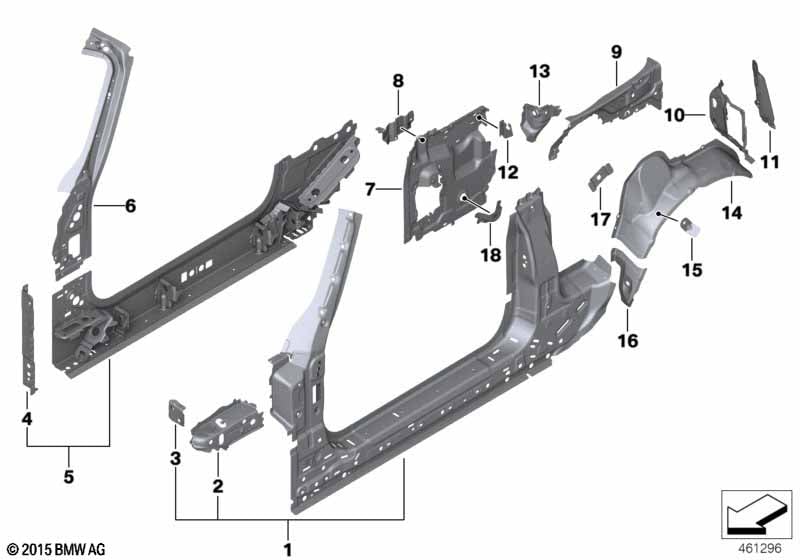

This Body-side frame-parts technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, center left | 1 | 41007430309 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 01 | Side frame, center right | 1 | 41007430310 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hexagon screw with taper | M12X35 | 2 | 07148499258 | Shop at ECS Tuning | |||||
| 02 | Supporting strut,whl house, interior lft | 1 | 41007387005 | Shop at ECS Tuning | ||||||
| 02 | Supporting strut,whl house,interior rght | 1 | 41007387006 | Shop at ECS Tuning | ||||||
| 03 | Bulkhead support bracket, left | 1 | 41007387009 | Shop at ECS Tuning | ||||||
| 03 | Bulkhead support bracket, right | 1 | 41007387010 | Shop at ECS Tuning | ||||||
| 04 | End plate, side member, left | 1 | 41007417905 | NoS | Shop at ECS Tuning | |||||
| 04 | End plate side member, right | 1 | 41007417906 | NoS | Shop at ECS Tuning | |||||
| 05 | Interior left entrance | 1 | 41007402213 | Shop at ECS Tuning | ||||||
| 05 | Interior right entrance | 1 | 41007402214 | Shop at ECS Tuning | ||||||
| 06 | A-column, inner front left | 1 | 41007417919 | Shop at ECS Tuning | ||||||
| 06 | A-column, inner front right | 1 | 41007417920 | Shop at ECS Tuning | ||||||
| 07 | Side frame, center, inner left | 1 | 41007431307 | Shop at ECS Tuning | ||||||
| 07 | Side frame, center, inner right | 1 | 41007431308 | Shop at ECS Tuning | ||||||
| 08 | Reinforcement, belt deflector, left | 1 | 41007431301 | NoS | Shop at ECS Tuning | |||||
| 08 | Reinforcement, belt deflector, right | 1 | 41007431302 | NoS | Shop at ECS Tuning | |||||
| 09 | Side frame, inside, rear left | 1 | 41007431327 | Shop at ECS Tuning | ||||||
| 09 | Side frame, inside, rear right | 1 | 41007431328 | Shop at ECS Tuning | ||||||
| 10 | Left interior column D | 1 | 41007431331 | Shop at ECS Tuning | ||||||
| 10 | Right interior column D | 1 | 41007431332 | Shop at ECS Tuning | ||||||
| 11 | Reinforcement, drip molding, left | 1 | 41007431335 | Shop at ECS Tuning | ||||||
| 11 | Reinforcement, drip molding, right | 1 | 41007431336 | Shop at ECS Tuning | ||||||
| 12 | Bracket for window lift, left | 1 | 41007431313 | Shop at ECS Tuning | ||||||
| 12 | Bracket for window lift, right | 1 | 41007431314 | NoS | Shop at ECS Tuning | |||||
| 13 | Bulkhead, rear quarter panel, left | 1 | 41007431323 | Shop at ECS Tuning | ||||||
| 13 | Bulkhead, rear quarter panel, right | 1 | 41007431324 | Shop at ECS Tuning | ||||||
| 14 | Wheel arch outer rear left | 1 | 41007410855 | Shop at ECS Tuning | ||||||
| 14 | Wheel arch outer rear right | 1 | 41007410856 | Shop at ECS Tuning | ||||||
| 15 | Bracket for wheelhousing | 1 | 41007431316 | Shop at ECS Tuning | ||||||
| 16 | Cover panel, wheel house, left | 1 | 41007431319 | Shop at ECS Tuning | ||||||
| 16 | Cover panel, wheel house, right | 1 | 41007431320 | NoS | Shop at ECS Tuning | |||||
| 17 | Bracket DWA | 1 | 41007284325 | Shop at ECS Tuning | ||||||
| 18 | Mount for power window | 1 | 41007431310 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
