Side frame section, inner for BMW 5 Series G30 520dX (2020)

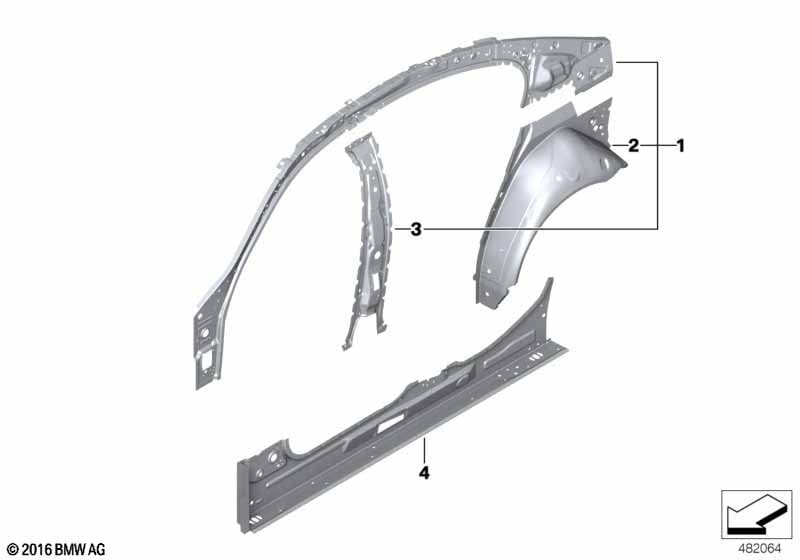

This Side frame section, inner technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left interior side frame | 1 | 41007437425 | Shop at ECS Tuning | ||||||
| 01 | Right interior side frame | 1 | 41007437426 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Threaded welding stud | M6X14 | 2 | 07147186109 | Shop at ECS Tuning | |||||
| 02 | Wheel-house inner panel, rear left | 1 | 41007437455 | Shop at ECS Tuning | ||||||
| 02 | Wheel-house inner panel, rear right | 1 | 41007437456 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Threaded welding stud | M6X14 | 2 | 07147186109 | Shop at ECS Tuning | |||||
| 03 | Interior left column B | 1 | 41007498973 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 03 | Column B inside right | 1 | 41007498974 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Holder B-pillar | 1 | 41007498979 | Shop at ECS Tuning | ||||||
| 04 | Side member, inner left | 1 | 41007453081 | Shop at ECS Tuning | ||||||
| 04 | Side member, inner right | 1 | 41007453082 | Shop at ECS Tuning | ||||||
