Roof for BMW MINI Countryman F60 Cooper (2020)

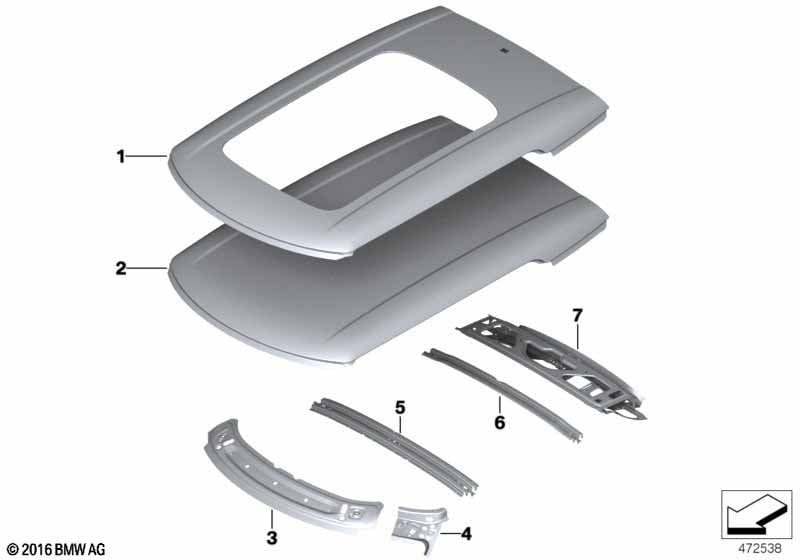

This Roof technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 01 | Panorama roof | 1 | 41007449368 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 22 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 27 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 02 | Roof | 1 | 41007449318 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 22 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Punch rivet N4 | 27 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 03 | Apron | 1 | 41007449370 | Shop at ECS Tuning | ||||||
| 04 | Connector, windshield cowl, lateral,left | 1 | 41007449371 | Shop at ECS Tuning | ||||||
| 04 | Connector, windshield cowl,lateral,right | 1 | 41007449372 | Shop at ECS Tuning | ||||||
| 05 | Roof bow, front | 1 | 41007449373 | Shop at ECS Tuning | ||||||
| 06 | Rear roof bow | 1 | 41007449374 | Shop at ECS Tuning | ||||||
| 07 | Rear window frame | 1 | 41007449385 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 Cooper Roof?
- This technical diagram illustrates the Roof within the Bodywork group for the MINI Countryman F60 Cooper produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Panorama roof (Part #41007449368).
- Which models use the hardware listed in this Roof?
- The hardware and components featured in the Roof are specific to the MINI Countryman F60 Cooper produced during 2020. These technical specifications ensure that parts like the Panorama roof (41007449368) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof assembly?
- Each item in the Roof corresponds to the numbered list below the illustration. For the MINI Countryman F60 Cooper, you can identify the Panorama roof by locating its position on the schematic, which then links to the official BMW part number 41007449368 for the Bodywork section.
