Body-side frame-parts for BMW MINI Countryman F60 One (2020)

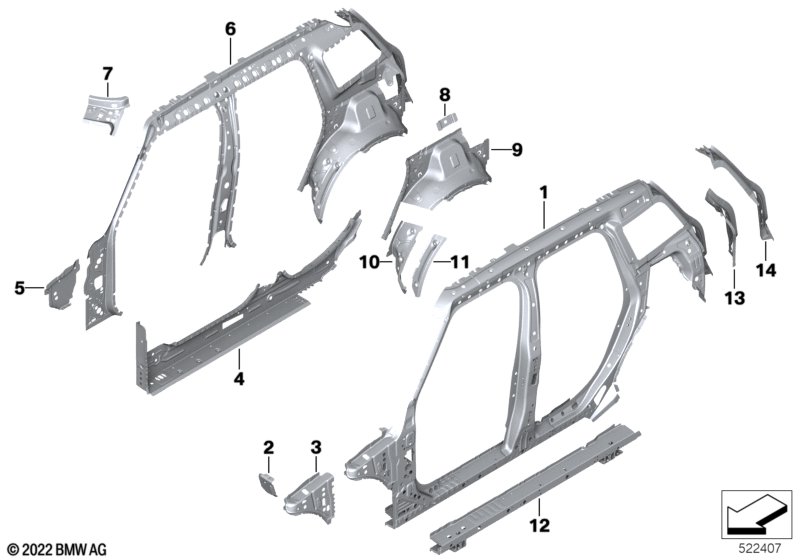

This Body-side frame-parts technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, center left | 1 | 41007449329 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 01 | Side frame, center right | 1 | 41007449330 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hexagon screw with taper | M12X35 | 4 | 07148499258 | Shop at ECS Tuning | |||||
| 02 | Supporting strut,whl house, interior lft | 1 | 41007408793 | Shop at ECS Tuning | ||||||
| 02 | Supporting strut,whl house,interior rght | 1 | 41007408794 | Shop at ECS Tuning | ||||||
| 03 | Bulkhead support bracket, left | 1 | 41007408635 | Shop at ECS Tuning | ||||||
| 03 | Bulkhead support bracket, right | 1 | 41007408636 | Shop at ECS Tuning | ||||||
| 04 | Interior left entrance | 1 | 41007402261 | Shop at ECS Tuning | ||||||
| 04 | Interior right entrance | 1 | 41007402262 | Shop at ECS Tuning | ||||||
| 05 | Left interior column A | 1 | 41007402033 | Shop at ECS Tuning | ||||||
| 05 | Right interior column A | 1 | 41007402034 | Shop at ECS Tuning | ||||||
| 06 | Left interior side frame | 1 | 41007449325 | Shop at ECS Tuning | ||||||
| 06 | Right interior side frame | 1 | 41007449326 | Shop at ECS Tuning | ||||||
| 07 | Connector, windshield cowl, lateral,left | 1 | 41007449371 | Shop at ECS Tuning | ||||||
| 07 | Connector, windshield cowl,lateral,right | 1 | 41007449372 | Shop at ECS Tuning | ||||||
| 08 | Bracket DWA | 1 | 41007284325 | Shop at ECS Tuning | ||||||
| 09 | Wheelhouse rear, outer half left | 1 | 41007449359 | Shop at ECS Tuning | ||||||
| 09 | Wheelhousing, rear, outer section, right | 1 | 41007449360 | Shop at ECS Tuning | ||||||
| 10 | End panel, wheel arch, inner left | 1 | 41007449365 | Shop at ECS Tuning | ||||||
| 10 | End panel, wheel arch, inner right | 1 | 41007449366 | Shop at ECS Tuning | ||||||
| 11 | End panel, wheelhousing, outer left | 1 | 41007449363 | Shop at ECS Tuning | ||||||
| 11 | End panel, wheelhousing, outer right | 1 | 41007449364 | Shop at ECS Tuning | ||||||
| 12 | Reinforcement, entry, left | 1 | 41007449339 | Shop at ECS Tuning | ||||||
| 12 | Reinforcement, entry, right | 1 | 41007449340 | Shop at ECS Tuning | ||||||
| 13 | Left interior column D | 1 | 41007483627 | Shop at ECS Tuning | ||||||
| 13 | Right interior column D | 1 | 41007483628 | Shop at ECS Tuning | ||||||
| 14 | reinforcement D-pillar inside left | 1 | 41007483629 | Shop at ECS Tuning | ||||||
| 14 | reinforcement D-pillar inside right | 1 | 41007483630 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 One Body-side frame-parts?
- This technical diagram illustrates the Body-side frame-parts within the Bodywork group for the MINI Countryman F60 One produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Side frame, center left (Part #41007449329).
- Which models use the hardware listed in this Body-side frame-parts?
- The hardware and components featured in the Body-side frame-parts are specific to the MINI Countryman F60 One produced during 2020. These technical specifications ensure that parts like the Side frame, center left (41007449329) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Body-side frame-parts assembly?
- Each item in the Body-side frame-parts corresponds to the numbered list below the illustration. For the MINI Countryman F60 One, you can identify the Side frame, center left by locating its position on the schematic, which then links to the official BMW part number 41007449329 for the Bodywork section.
