Rear door - hinge/door brake for BMW 5 Series G31 Touring 540dX (2020)

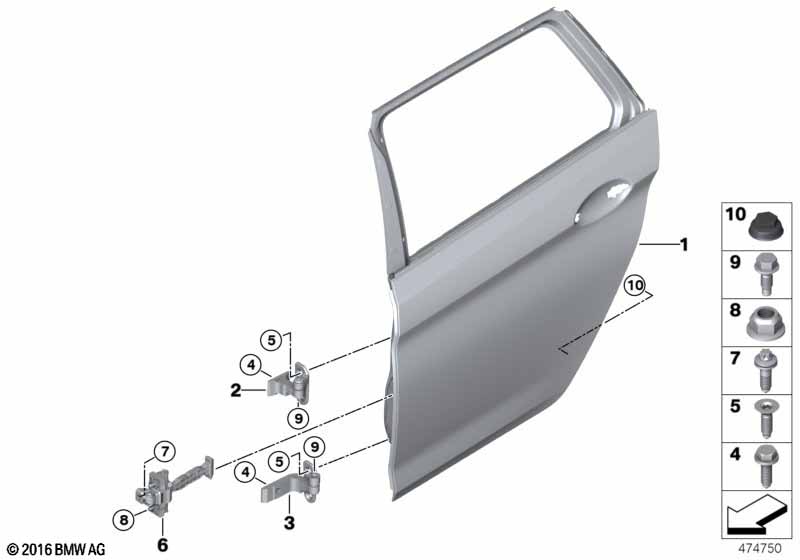

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door, aluminum, rear left | 1 | 41007408965 | Shop at ECS Tuning | ||||||
| 01 | Door, aluminum, rear right | 1 | 41007408966 | Shop at ECS Tuning | ||||||
| 02 | Door hinge, top left | 1 | 41517420093 | Shop at ECS Tuning | ||||||
| 02 | Door hinge, top right | 1 | 41517420094 | Shop at ECS Tuning | ||||||
| 03 | Door hinge, bottom left | 1 | 41527420097 | Shop at ECS Tuning | ||||||
| 03 | Door hinge, bottom right | 1 | 41527420098 | Shop at ECS Tuning | ||||||
| 04 | Hexagon screw with taper | M12X35 | 4 | 07148499258 | Shop at ECS Tuning | |||||
| 05 | Torx-countersunk head screw | ISA M8X29.5 | 8 | 07147261771 | Shop at ECS Tuning | |||||
| 06 | Rear door brake | 2 | 51227341033 | Shop at ECS Tuning | ||||||
| 07 | Torx-bolt with washer | ASA M8X22 | 2 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M6 | 4 | 07129909275 | Shop at ECS Tuning | |||||
| 09 | Hexagon screw with flange | M8X24 | 4 | 07147284478 | Shop at ECS Tuning | |||||
| 10 | Covering cap | 2 | 07149216250 | Shop at ECS Tuning |
