Cavity shielding, side frame for BMW 5 Series G31 Touring 530i (2018)

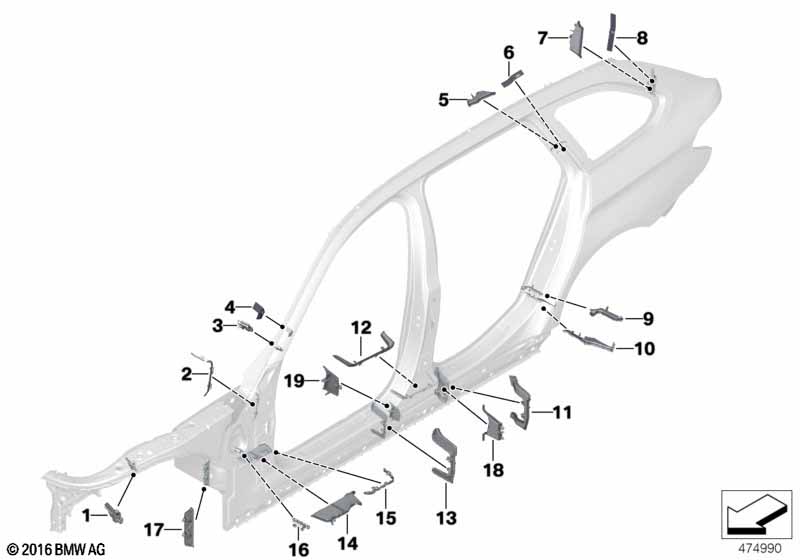

This Cavity shielding, side frame technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulded part f wheel housing supp.,front | 2 | 41007342721 | Shop at ECS Tuning | ||||||
| 02 | Shaped part A-pillar top left | 1 | 41007432801 | Shop at ECS Tuning | ||||||
| 02 | Shaped part A-pillar top right | 1 | 41007432802 | Shop at ECS Tuning | ||||||
| 03 | Molded part, roof frame, inner left | 1 | 41007342771 | Shop at ECS Tuning | ||||||
| 03 | Molded part, roof frame, inner right | 1 | 41007342772 | Shop at ECS Tuning | ||||||
| 04 | Molded part f roof frame exterior front | 2 | 41007342769 | Shop at ECS Tuning | ||||||
| 05 | Moulded part f column C, interior left | 1 | 41007342753 | Shop at ECS Tuning | ||||||
| 05 | Molded part f column C, interior right | 1 | 41007342754 | Shop at ECS Tuning | ||||||
| 06 | Molded part column C, exterior | 2 | 41007342741 | Shop at ECS Tuning | ||||||
| 07 | Molded part f column D, interior left | 1 | 41007342767 | Shop at ECS Tuning | ||||||
| 07 | Molded part f column D, interior right | 1 | 41007342768 | Shop at ECS Tuning | ||||||
| 08 | Molded part column D, exterior | 2 | 41007342759 | Shop at ECS Tuning | ||||||
| 09 | Molded part, wheelhousing, inside, left | 1 | 41007342739 | Shop at ECS Tuning | ||||||
| 09 | Molded part, wheelhousing, inside, right | 1 | 41007342740 | Shop at ECS Tuning | ||||||
| 10 | Molded part, wheelhousing, outside, left | 1 | 41007342737 | Shop at ECS Tuning | ||||||
| 10 | Molded part, wheelhousing outer right | 1 | 41007342738 | Shop at ECS Tuning | ||||||
| 11 | Molded part, B-pillar, rear outer left | 1 | 41007342775 | Shop at ECS Tuning | ||||||
| 11 | Molded part, B-pillar, rear outer right | 1 | 41007342776 | Shop at ECS Tuning | ||||||
| 12 | Molded part, B-pillar, lower outer left | 1 | 41007402095 | Shop at ECS Tuning | ||||||
| 12 | Molded part, B-pillar, lower outer right | 1 | 41007402096 | Shop at ECS Tuning | ||||||
| 13 | Shaped part B-pillar front outer | 2 | 41007342773 | Shop at ECS Tuning | ||||||
| 14 | Molded part column A, bottom int. left | 1 | 41007342731 | Shop at ECS Tuning | ||||||
| 14 | Molded part column A, bottom int. right | 1 | 41007342732 | Shop at ECS Tuning | ||||||
| 15 | Molded part column A, bottom ext. left | 1 | 41007342723 | Shop at ECS Tuning | ||||||
| 15 | Molded part column A, bottom ext. right | 1 | 41007342724 | Shop at ECS Tuning | ||||||
| 16 | Shaped part A-pillar bottom | 2 | 41007457797 | Shop at ECS Tuning | ||||||
| 17 | Shaped part, bulkhead carrier support | 2 | 41007330413 | Shop at ECS Tuning | ||||||
| 18 | Shaped part B-pillar rear inner | 2 | 41007342719 | Shop at ECS Tuning | ||||||
| 19 | Shaped part B-pillar front inner | 2 | 41007342777 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G31 Touring 530i Cavity shielding, side frame?
- This technical diagram illustrates the Cavity shielding, side frame within the Bodywork group for the 5 Series G31 Touring 530i produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Moulded part f wheel housing supp.,front (Part #41007342721).
- Which models use the hardware listed in this Cavity shielding, side frame?
- The hardware and components featured in the Cavity shielding, side frame are specific to the 5 Series G31 Touring 530i produced during 2018. These technical specifications ensure that parts like the Moulded part f wheel housing supp.,front (41007342721) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cavity shielding, side frame assembly?
- Each item in the Cavity shielding, side frame corresponds to the numbered list below the illustration. For the 5 Series G31 Touring 530i, you can identify the Moulded part f wheel housing supp.,front by locating its position on the schematic, which then links to the official BMW part number 41007342721 for the Bodywork section.
