Side frame section, center for BMW 5 Series G31 Touring 520d (2019)

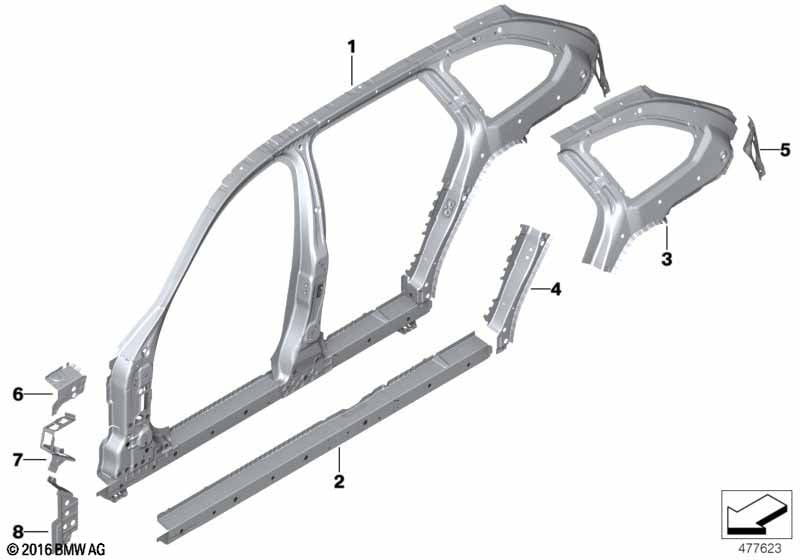

This Side frame section, center technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, center left | 1 | 41007437433 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hexagon screw with taper | M12X35 | 4 | 07148499258 | Shop at ECS Tuning | |||||
| 01 | Side frame, center right | 1 | 41007437434 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hexagon screw with taper | M12X35 | 1 | 07148499258 | Shop at ECS Tuning | |||||
| 02 | Reinforcement, entry, left | 1 | 41007437467 | Shop at ECS Tuning | ||||||
| 02 | Reinforcement, entry, right | 1 | 41007437468 | Shop at ECS Tuning | ||||||
| 03 | reinforcement D-pillar inside left | 1 | 41007437483 | NoS | Shop at ECS Tuning | |||||
| 03 | reinforcement D-pillar inside right | 1 | 41007437484 | NoS | Shop at ECS Tuning | |||||
| 04 | C-pillar support, left | 1 | 41007437477 | Shop at ECS Tuning | ||||||
| 04 | C-pillar support, right | 1 | 41007437478 | Shop at ECS Tuning | ||||||
| 05 | Support for D-pillar, left | 1 | 41007437489 | Shop at ECS Tuning | ||||||
| 05 | Support for D-pillar, right | 1 | 41007437490 | Shop at ECS Tuning | ||||||
| 06 | Support, carrier support, left | 1 | 41007437463 | Shop at ECS Tuning | ||||||
| 06 | Support, carrier support, right | 1 | 41007437464 | Shop at ECS Tuning | ||||||
| 07 | Bulkhead plate, A-pillar left | 1 | 41217421799 | Shop at ECS Tuning | ||||||
| 07 | Bulkhead plate, A-pillar right | 1 | 41217421800 | Shop at ECS Tuning | ||||||
| 08 | Crash reinforcement, left | 1 | 41007469619 | Shop at ECS Tuning | ||||||
| 08 | Crash reinforcement, right | 1 | 41007469620 | Shop at ECS Tuning | ||||||
