Rear wheelhouse/floor parts for BMW 5 Series G31 Touring LCI 530e (2024)

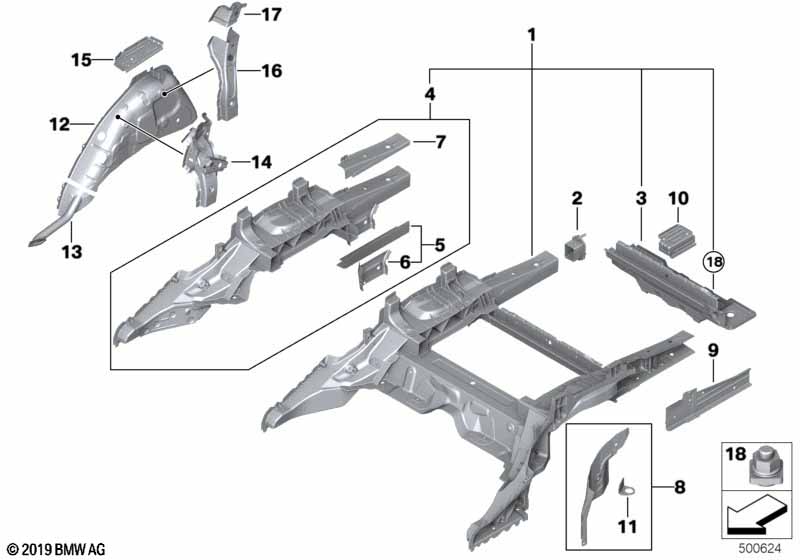

This Rear wheelhouse/floor parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring LCI 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support structure for cargo area floor | 1 | 41007431420 | Shop at ECS Tuning | ||||||
| 02 | Mount, bumper left | 1 | 41009631871 | Shop at ECS Tuning | ||||||
| 02 | Mount, bumper right | 1 | 41009631872 | Shop at ECS Tuning | ||||||
| 03 | Luggage compartment pan | 1 | 41007431397 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet nut, countersunk head | M8 | 1 | 07147206553 | Shop at ECS Tuning | |||||
| 04 | Side member, inner left | 1 | 41007431383 | NoS | Shop at ECS Tuning | |||||
| 04 | Side member, inner right | 1 | 41007431384 | NoS | Shop at ECS Tuning | |||||
| 05 | Extension, side member, lower right | 1 | 41007431356 | Shop at ECS Tuning | ||||||
| 05 | Extension, side member, lower left | 1 | 41007431361 | Shop at ECS Tuning | ||||||
| 06 | Trunk tub left | 1 | 41007469333 | Shop at ECS Tuning | ||||||
| 06 | luggage compartment liner right | 1 | 41007469334 | Shop at ECS Tuning | ||||||
| 07 | Extension, side member, upper left | 1 | 41007431633 | Shop at ECS Tuning | ||||||
| 07 | Extension, side member, upper right | 1 | 41007431634 | Shop at ECS Tuning | ||||||
| 08 | End plate, side member, left | 1 | 41007431531 | Shop at ECS Tuning | ||||||
| 08 | End plate, side member, right | 1 | 41007431532 | NoS | Shop at ECS Tuning | |||||
| 09 | Extension, side member, side, right | 1 | 41007431500 | Shop at ECS Tuning | ||||||
| 09 | Extension, side member, side, left | 1 | 41007431509 | Shop at ECS Tuning | ||||||
| 10 | Reinforcement for trunk well | 1 | 41007469330 | Shop at ECS Tuning | ||||||
| 11 | Holder, brake hose, left | 1 | 41007413083 | Shop at ECS Tuning | ||||||
| 11 | Holder, brake hose, right | 1 | 41007413084 | Shop at ECS Tuning | ||||||
| 12 | Rear left wheelhouse, inner half | 1 | 41007431599 | NoS | Shop at ECS Tuning | |||||
| 12 | Rear right wheelhouse, inner half | PHEV | 1 | 41009624488 | NoS | Shop at ECS Tuning | ||||
| 13 | Pipe, fuel ventilation | 1 | 41007431657 | Shop at ECS Tuning | ||||||
| 14 | Support, wheelhouse left | 1 | 41007431551 | NoS | Shop at ECS Tuning | |||||
| 14 | Support, wheelhouse right | 1 | 41007431552 | NoS | Shop at ECS Tuning | |||||
| 15 | Support belt reel, right | 1 | 41007431662 | NoS | Shop at ECS Tuning | |||||
| 15 | Support belt reel, left | 1 | 41007431663 | NoS | Shop at ECS Tuning | |||||
| 18 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 18 | Ground pin 48V | M8X13 | X | 41009880323 | Shop at ECS Tuning | |||||
| 18 | Earth pin | M6X12 | X | 41118367249 | $1.85 | ENDED | Shop at ECS Tuning | |||
| 18 | Earth pin | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
