Single components for body-side frame for BMW 1 Series F52 Sedan 118i (2023)

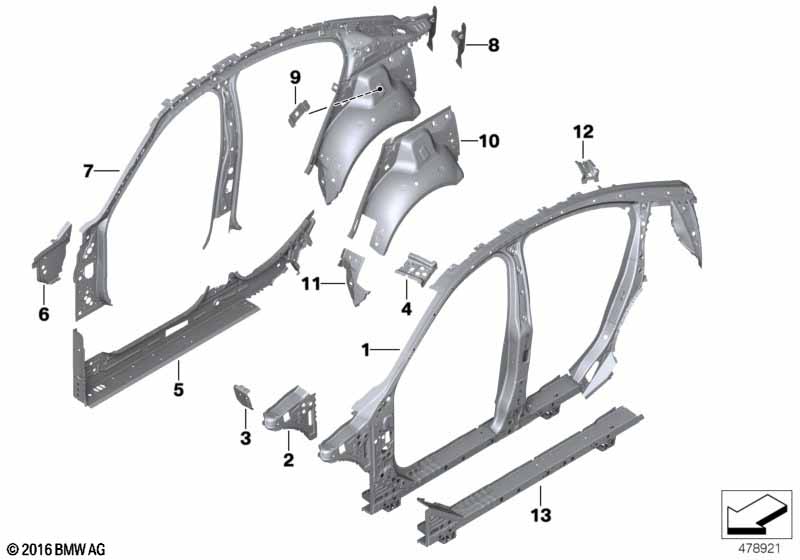

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 1 Series F52 Sedan 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, center left | 1 | 41007444597 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 01 | Side frame, center right | 1 | 41007444598 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hexagon screw with taper | M12X35 | 4 | 07148499258 | Shop at ECS Tuning | |||||
| 02 | Supporting strut,whl house, interior lft | 1 | 41007431527 | Shop at ECS Tuning | ||||||
| 02 | Supporting strut,whl house,interior rght | 1 | 41007431528 | Shop at ECS Tuning | ||||||
| 03 | Bulkhead support bracket, left | 1 | 41007408635 | Shop at ECS Tuning | ||||||
| 03 | Bulkhead support bracket, right | 1 | 41007408636 | Shop at ECS Tuning | ||||||
| 04 | Connector, windshield cowl, lateral,left | 1 | 41007444609 | Shop at ECS Tuning | ||||||
| 04 | Connector, windshield cowl,lateral,right | 1 | 41007444610 | Shop at ECS Tuning | ||||||
| 05 | Interior left entrance | 1 | 41007402249 | Shop at ECS Tuning | ||||||
| 05 | Interior right entrance | 1 | 41007402250 | Shop at ECS Tuning | ||||||
| 06 | Left interior column A | 1 | 41007402021 | Shop at ECS Tuning | ||||||
| 06 | Right interior column A | 1 | 41007402022 | Shop at ECS Tuning | ||||||
| 07 | Left interior side frame | 1 | 41007444595 | Shop at ECS Tuning | ||||||
| 07 | Right interior side frame | 1 | 41007444596 | Shop at ECS Tuning | ||||||
| 08 | Drip rail, rear left | 1 | 41007444619 | Shop at ECS Tuning | ||||||
| 08 | Drip rail, rear right | 1 | 41007444620 | Shop at ECS Tuning | ||||||
| 09 | Bracket DWA | 1 | 41007284325 | Shop at ECS Tuning | ||||||
| 10 | Wheelhouse rear, outer half left | 1 | 41007444621 | Shop at ECS Tuning | ||||||
| 10 | Wheelhousing, rear, outer section, right | 1 | 41007444622 | Shop at ECS Tuning | ||||||
| 11 | End panel, wheelhousing, outer left | 1 | 41007444615 | Shop at ECS Tuning | ||||||
| 11 | End panel, wheelhousing, outer right | 1 | 41007444616 | Shop at ECS Tuning | ||||||
| 12 | Connector, rear window frame, upper left | 1 | 41007444607 | Shop at ECS Tuning | ||||||
| 12 | Connector, rear window frame, top right | 1 | 41007444608 | Shop at ECS Tuning | ||||||
| 13 | Reinforcement, entry, left | 1 | 41007444599 | Shop at ECS Tuning | ||||||
| 13 | Reinforcement, entry, right | 1 | 41007444600 | Shop at ECS Tuning | ||||||
