Cavity shielding, side frame for BMW 6 Series G32 GT 640i (2019)

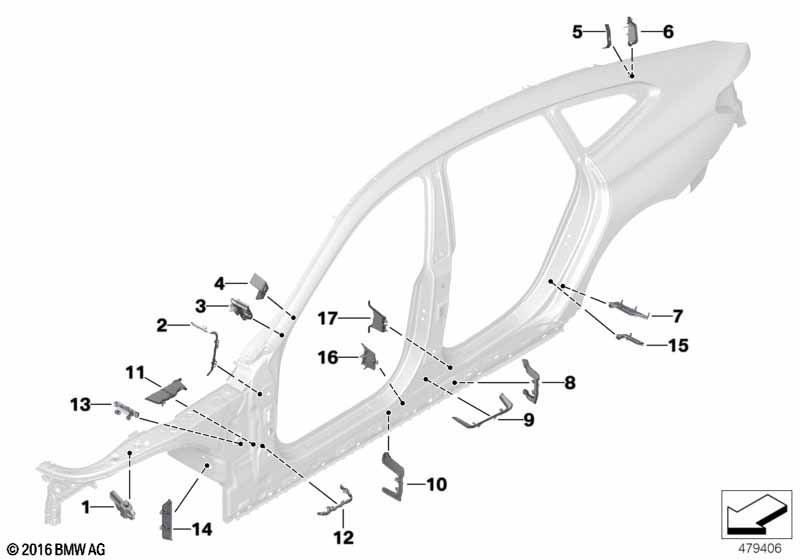

This Cavity shielding, side frame technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 640i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulded part f wheel housing supp.,front | 2 | 12/2020 | 41007342793 | ENDED | Shop at ECS Tuning | ||||
| 01 | Moulded part f wheel housing supp.,front | 2 | 41007497486 | Shop at ECS Tuning | ||||||
| 02 | Shaped part A-pillar top left | 1 | 41007214747 | Shop at ECS Tuning | ||||||
| 02 | Shaped part A-pillar top right | 1 | 41007214748 | Shop at ECS Tuning | ||||||
| 03 | Molded part, roof frame, inner left | 1 | 41007392855 | Shop at ECS Tuning | ||||||
| 03 | Molded part, roof frame, inner right | 1 | 41007392856 | Shop at ECS Tuning | ||||||
| 04 | Molded part f roof frame exterior front | 2 | 41007392853 | Shop at ECS Tuning | ||||||
| 05 | Shaped part roof frame outer rear | 2 | 41007392857 | Shop at ECS Tuning | ||||||
| 06 | Shaped part roof frame inner rear | 2 | 41007396361 | Shop at ECS Tuning | ||||||
| 07 | Shaped part for door sill, left | 1 | 41007392823 | Shop at ECS Tuning | ||||||
| 07 | Right moulded part f entrance | 1 | 41007392824 | Shop at ECS Tuning | ||||||
| 08 | Molded part, B-pillar, rear outer left | 1 | 41007392831 | Shop at ECS Tuning | ||||||
| 08 | Molded part, B-pillar, rear outer right | 1 | 41007392832 | Shop at ECS Tuning | ||||||
| 09 | Molded part, B-pillar, lower outer left | 1 | 41007402097 | Shop at ECS Tuning | ||||||
| 09 | Molded part, B-pillar, lower outer right | 1 | 41007402098 | Shop at ECS Tuning | ||||||
| 10 | Shaped part B-pillar front outer | 2 | 41007392829 | Shop at ECS Tuning | ||||||
| 11 | Molded part column A, bottom int. left | 1 | 41007392817 | Shop at ECS Tuning | ||||||
| 11 | Molded part column A, bottom int. right | 1 | 41007392818 | Shop at ECS Tuning | ||||||
| 12 | Molded part, A-pillar, lower outer | 2 | 41007392819 | Shop at ECS Tuning | ||||||
| 13 | Shaped part A-pillar bottom | 2 | 41007457797 | Shop at ECS Tuning | ||||||
| 14 | Shaped part, bulkhead carrier support | 2 | 41007330413 | Shop at ECS Tuning | ||||||
| 15 | Molded part, wheelhousing, inside, left | 1 | 41007392821 | Shop at ECS Tuning | ||||||
| 15 | Molded part, wheelhousing, inside, right | 1 | 41007392822 | Shop at ECS Tuning | ||||||
| 16 | Shaped part B-pillar front inner | 2 | 41007214743 | Shop at ECS Tuning | ||||||
| 17 | Shaped part B-pillar rear inner | 2 | 41007214745 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
