Mounting parts, trunk lid for BMW 5 Series G30 540i (2019)

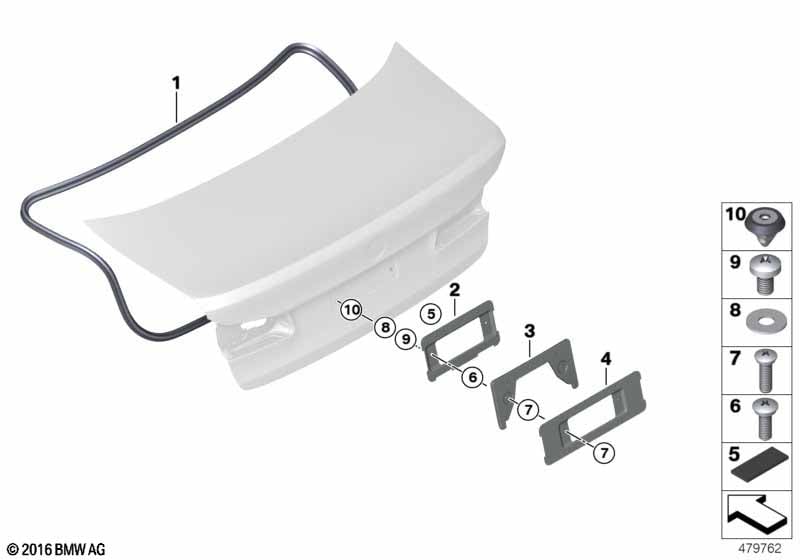

This Mounting parts, trunk lid technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid gasket | 1 | 51767442715 | Shop at ECS Tuning | ||||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 02 | License-plate carrier rear | US | 1 | 51139448724 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 03 | License plate bracket, rear | JAPAN | 1 | 51137176631 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 04 | License plate holder | CHINA | 1 | 51137211673 | Shop at ECS Tuning | |||||
| 05 | Adhesive pad | 10X45MM | 3 | 51187134021 | $1.00 | Shop at ECS Tuning | ||||
| ECE For ECE license plate |
||||||||||
| 06 | Phillips screw f plastic material | TS 5X13 | 2 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 07 | Phillips screw f plastic material | TS5X16MM | 2 | 51118122522 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with National version japan or Control of number-plate attachment |
L807A=Yes S992A=Yes |
|||||||||
| 07 | Phillips screw f plastic material | TS5X16MM | 2 | 51118122522 | $0.39 | Shop at ECS Tuning | ||||
| 08 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 09 | Countersunk screw | M5X8,8-H-ZNFE | 4 | 07119906254 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Expanding nut | 2 | 07147429950 | Shop at ECS Tuning | ||||||
