Trunk lid for BMW 5 Series G30 520i (2019)

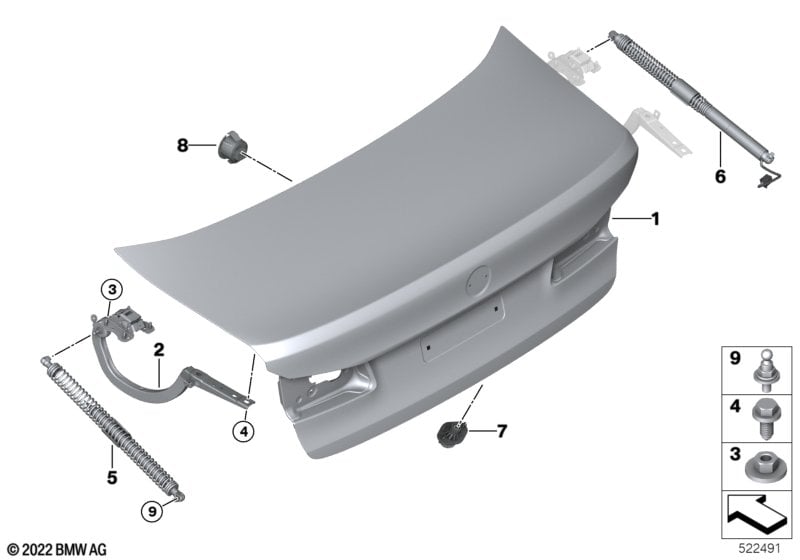

This Trunk lid technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid, aluminum | 1 | 41007440695 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Attachment kit, tailgate | VALUE PARTS | 1 | 41009650307 | Shop at ECS Tuning | |||||
| 02 | Left trunk lid hinge | 1 | 41007440697 | Shop at ECS Tuning | ||||||
| 02 | Right trunk lid hinge | 1 | 41007440698 | Shop at ECS Tuning | ||||||
| 03 | Hex nut with plate | M8 | 8 | 07149302543 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X18 | 4 | 07147279964 | Shop at ECS Tuning | |||||
| 05 | Tension spring left | 1 | 51247366403 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 05 | Tension spring shock absorber right | 1 | 51247366406 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 06 | Spindle drive, right | 1 | 51244A1FA90 | ENDED | Shop at ECS Tuning | |||||
| 07 | Breakthrough buffer | 2 | 51147458725 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism and Comfort access |
S316A=Yes S322A=Yes |
|||||||||
| 08 | Warning signal unit | 1 | 51627482572 | Shop at ECS Tuning | ||||||
| 09 | Ball pin | 1 | 41637184053 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
