Trunk lid for BMW MINI Countryman F60 Cooper (2020)

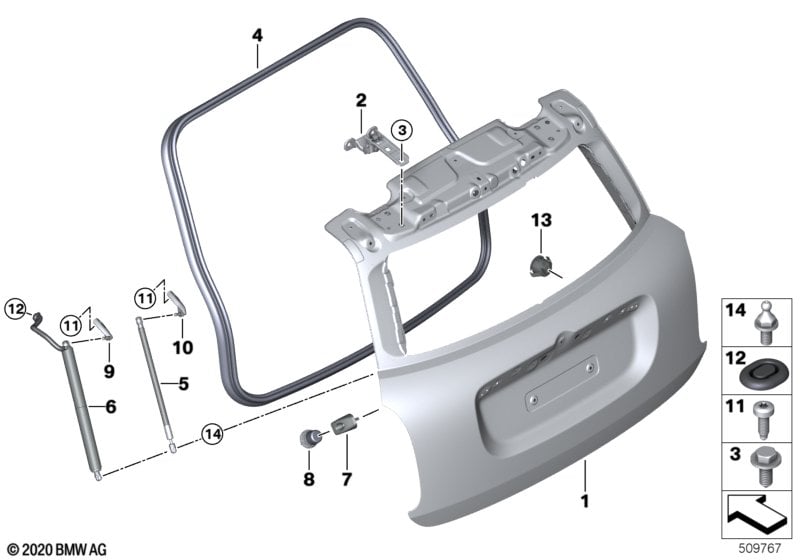

This Trunk lid technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41007389404 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Attachment kit, tailgate | VALUE PARTS | 1 | 41009650354 | Shop at ECS Tuning | |||||
| 02 | Left trunk lid hinge | 1 | 41007389405 | Shop at ECS Tuning | ||||||
| 02 | Right trunk lid hinge | 1 | 41007389406 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt with washer | M8X25 | 8 | 07147446989 | Shop at ECS Tuning | |||||
| 04 | Trunk lid gasket | 1 | 41007389407 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 05 | Gas pressurized spring f trunk lid | 2 | 51247389398 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 06 | Spindle drive | 2 | 11/2019 | 51249482767 | Shop at ECS Tuning | |||||
| 07 | Counter support stop | 2 | 51247394689 | Shop at ECS Tuning | ||||||
| 08 | Stop buffer | 2 | 51247476375 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 09 | Mount spindle drive top left | SCA | 1 | 51247418555 | Shop at ECS Tuning | |||||
| 09 | Mount spindle drive top right | SCA | 1 | 51247418556 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 10 | Mount, gas strut, upper left | 1 | 41007405769 | Shop at ECS Tuning | ||||||
| 10 | Mount, gas strut, upper right | 1 | 41007405770 | Shop at ECS Tuning | ||||||
| 11 | Countersunk screw | 10X20 ZNNID SW | 4 | 07119909406 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 12 | Blind plug | 18X24MM | 2 | 51710588794 | $0.85 | Shop at ECS Tuning | ||||
| 13 | Warning signal unit | 1 | 51627482572 | Shop at ECS Tuning | ||||||
| 14 | Ball pin | 1 | 41007458666 | Shop at ECS Tuning | ||||||
