Trunk lid / locking system for BMW MINI Countryman F60 Cooper (2020)

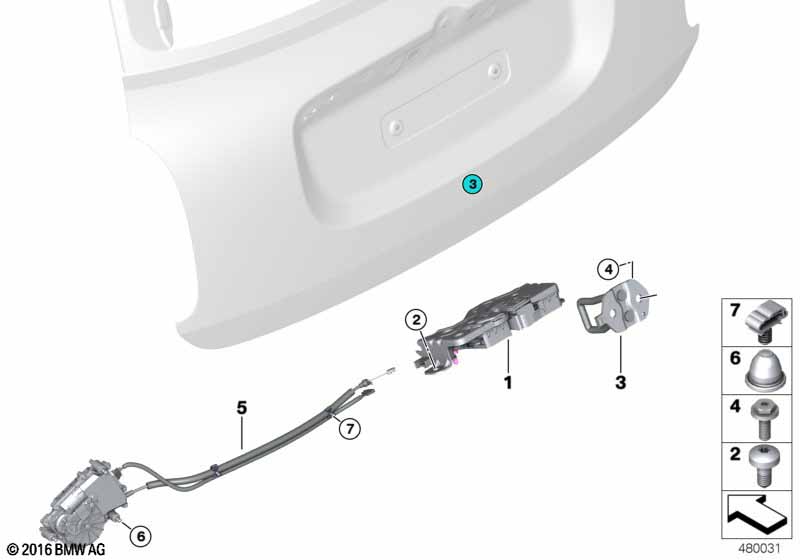

This Trunk lid / locking system technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid lock | 1 | 51247464415 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 01 | Trunk lid lock | SCA | 1 | 51247464411 | Shop at ECS Tuning | |||||
| 02 | Torx bolt | ISA M8X19,5 | 2 | 07147153762 | $0.55 | Shop at ECS Tuning | ||||
| 03 | Catch bracket | 1 | 51247473763 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt with washer | M8X24 | 2 | 07149112450 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 05 | Soft-Close-Automatic | 1 | 51247411831 | Shop at ECS Tuning | ||||||
| 06 | Snap-lock coupling | 3 | 63217216997 | $0.30 | Shop at ECS Tuning | |||||
| 07 | Tubing support | 2 | 34521164653 | $0.23 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 Cooper Trunk lid / locking system?
- This technical diagram illustrates the Trunk lid / locking system within the Bodywork group for the MINI Countryman F60 Cooper produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Trunk lid lock (Part #51247464415).
- Which models use the hardware listed in this Trunk lid / locking system?
- The hardware and components featured in the Trunk lid / locking system are specific to the MINI Countryman F60 Cooper produced during 2020. These technical specifications ensure that parts like the Trunk lid lock (51247464415) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk lid / locking system assembly?
- Each item in the Trunk lid / locking system corresponds to the numbered list below the illustration. For the MINI Countryman F60 Cooper, you can identify the Trunk lid lock by locating its position on the schematic, which then links to the official BMW part number 51247464415 for the Bodywork section.
