Wheelhouse/engine support for BMW iX3 G08 BEV iX3 (2021)

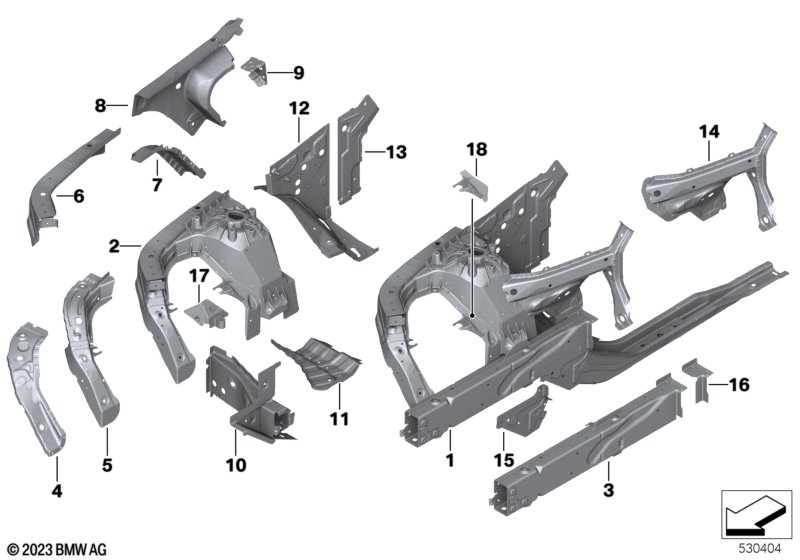

This Wheelhouse/engine support technical drawing provides a detailed breakdown of the assembly for the iX3 G08 BEV iX3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front left wheelhouse | 1 | 41009880945 | Shop at ECS Tuning | ||||||
| 01 | Wheelhousing, front right | 1 | 41009880946 | Shop at ECS Tuning | ||||||
| The following information is required when ordering: - Vehicle identification number |
||||||||||
| 01 | Wheelhousing with VIN, front right | 1 | 41009629693 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636310 | Shop at ECS Tuning | ||||||
| 02 | Spring strut assembly, front left | 1 | 41007481001 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Blind rivet N2 | 11 | 83190301419 | $1.98 | Shop at ECS Tuning | |||||
| -- | Repair element, component carrier, left | 1 | 41009621985 | Shop at ECS Tuning | ||||||
| 02 | Spring strut assembly, front right | 1 | 41007481002 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Blind rivet N2 | 11 | 83190301419 | $1.98 | Shop at ECS Tuning | |||||
| -- | Repair element, compnt.carrier, right | 11 | 41009621986 | Shop at ECS Tuning | ||||||
| 02 | Shock tower, front right, with VIN | 1 | 41002456023 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Blind rivet N2 | 11 | 83190301419 | $1.98 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Repair element, compnt.carrier, right | 1 | 41009621986 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636310 | Shop at ECS Tuning | ||||||
| 03 | Engine support, left | 1 | 41007481009 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 03 | Engine support right | 1 | 41007481010 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N1 | 18 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Blind rivet N2 | 15 | 83190301419 | $1.98 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Bodywork adhesive K1 | 195ML | 1 | 83190413015 | $244.89 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| 04 | Supporting strut,whl house, interior lft | 1 | 41007480999 | Shop at ECS Tuning | ||||||
| 04 | Supporting strut,whl house,interior rght | 1 | 41007481000 | Shop at ECS Tuning | ||||||
| 05 | Wheel housing strut, front left | 1 | 41007480997 | Shop at ECS Tuning | ||||||
| 05 | Wheel housing strut, front right | 1 | 41007480998 | Shop at ECS Tuning | ||||||
| 06 | Supporting strut,whl house, exterior lft | 1 | 41007480995 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N1 | 8 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Blind rivet N3 | 6 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 11 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | BMW 2-pack PU foam | 50 ML | 1 | 83422288930 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Wheel housing strut, front left | 1 | 41007480997 | Shop at ECS Tuning | ||||||
| -- | Supporting strut,whl house, interior lft | 1 | 41007480999 | Shop at ECS Tuning | ||||||
| 06 | Supporting strut,whl house,exterior rght | 1 | 41007480996 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N1 | 8 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Blind rivet N3 | 6 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 11 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | BMW 2-pack PU foam | 50 ML | 1 | 83422288930 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Wheel housing strut, front right | 1 | 41007480998 | Shop at ECS Tuning | ||||||
| -- | Supporting strut,whl house,interior rght | 1 | 41007481000 | Shop at ECS Tuning | ||||||
| 07 | Bulkhead support bracket, left | 1 | 41008497157 | Shop at ECS Tuning | ||||||
| 07 | Bulkhead support bracket, right | 1 | 41008497158 | Shop at ECS Tuning | ||||||
| 08 | Extension, wheel housing strut left | 1 | 41008497155 | Shop at ECS Tuning | ||||||
| 08 | Extension, wheel housing strut right | 1 | 41008497156 | Shop at ECS Tuning | ||||||
| 09 | Bulkh.supp.carrier wheel well top left | 1 | 41008497159 | Shop at ECS Tuning | ||||||
| 09 | Bulkh.supp.carr.wheel well top right | 1 | 41008497160 | Shop at ECS Tuning | ||||||
| 10 | Connector Engine support/Side fram, left | 1 | 41009880963 | Shop at ECS Tuning | ||||||
| 10 | Connector Engine support/Side fram,right | 1 | 41009880964 | Shop at ECS Tuning | ||||||
| 11 | Left engine support reinforcement | 1 | 41007481011 | Shop at ECS Tuning | ||||||
| 11 | Reinforcement, engine support right | 1 | 41007481012 | Shop at ECS Tuning | ||||||
| 12 | Left interior column A | 1 | 41007481005 | NoS | Shop at ECS Tuning | |||||
| 12 | Right interior column A | 1 | 41007481006 | NoS | Shop at ECS Tuning | |||||
| 13 | Left interior column A | 1 | 41007481029 | Shop at ECS Tuning | ||||||
| 13 | Right interior column A | 1 | 41007481030 | Shop at ECS Tuning | ||||||
| 14 | Left engine compartment partition | 1 | 41007481013 | Shop at ECS Tuning | ||||||
| 14 | Right engine compartment partition | 1 | 41007481014 | Shop at ECS Tuning | ||||||
| 15 | Connection engine mount inside left | 1 | 41118498935 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Coarse-thread stud | L=14,2MM | 1 | 07147133425 | Shop at ECS Tuning | |||||
| -- | Earth pin | M6X12 | 3 | 41248185432 | Shop at ECS Tuning | |||||
| -- | Ground pin 48V | M8X13 | 1 | 41009880323 | Shop at ECS Tuning | |||||
| 15 | Connection engine mount inside right | 1 | 41118498936 | Shop at ECS Tuning | ||||||
| 16 | Reinforcement, engine support, left | 1 | 41007481041 | NoS | Shop at ECS Tuning | |||||
| 16 | Reinforcement, engine support, right | 1 | 41007481042 | NoS | Shop at ECS Tuning | |||||
| 17 | Repair element, component carrier, left | 1 | 41009621985 | Shop at ECS Tuning | ||||||
| 17 | Repair element, compnt.carrier, right | 1 | 41009621986 | Shop at ECS Tuning | ||||||
| 18 | Adapter spring pin right | 1 | 41002457982 | Shop at ECS Tuning | ||||||
