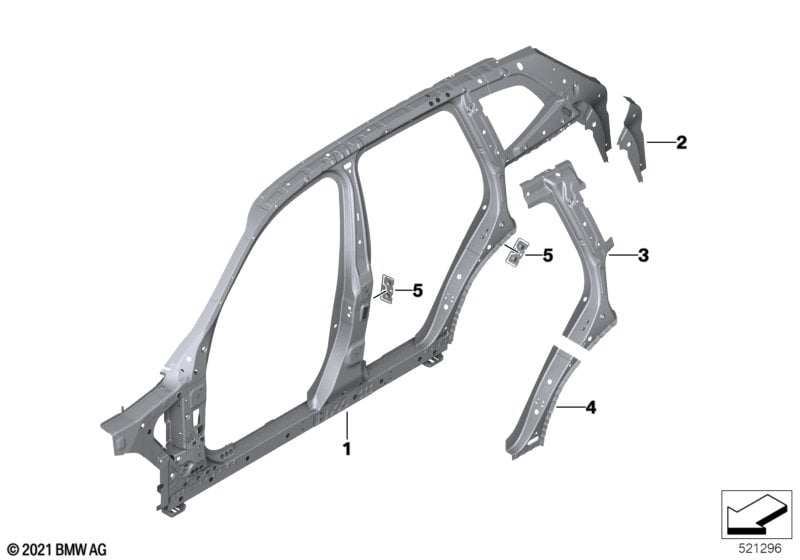

Side frame section, center for BMW iX3 G08 BEV iX3 (2021)
This Side frame section, center technical drawing provides a detailed breakdown of the assembly for the iX3 G08 BEV iX3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, center left | 1 | 41009451359 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 01 | Side frame, center right | 1 | 41009451360 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Hexagon screw with taper | M12X35 | 4 | 07148499258 | Shop at ECS Tuning | |||||
| 02 | Reinforcement for D-pillar bottom left | 1 | 41007493967 | Shop at ECS Tuning | ||||||
| 02 | Reinforcement for D-pillar bottom right | 1 | 41007493968 | Shop at ECS Tuning | ||||||
| 03 | Reinforcement C-pillar top left | 1 | 41008737899 | NoS | Shop at ECS Tuning | |||||
| 03 | Reinforcement C-pillar top right | 1 | 41008737900 | NoS | Shop at ECS Tuning | |||||
| 04 | Reinforcement column C, bottom, left | 1 | 41008737901 | NoS | Shop at ECS Tuning | |||||
| 04 | Reinforcement column C, bottom, right | 1 | 41008737902 | Shop at ECS Tuning | ||||||
| 05 | Threaded plate, striker | 2 | 41009631095 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
