Trunk lid for BMW 6 Series G32 GT 620dX (2020)

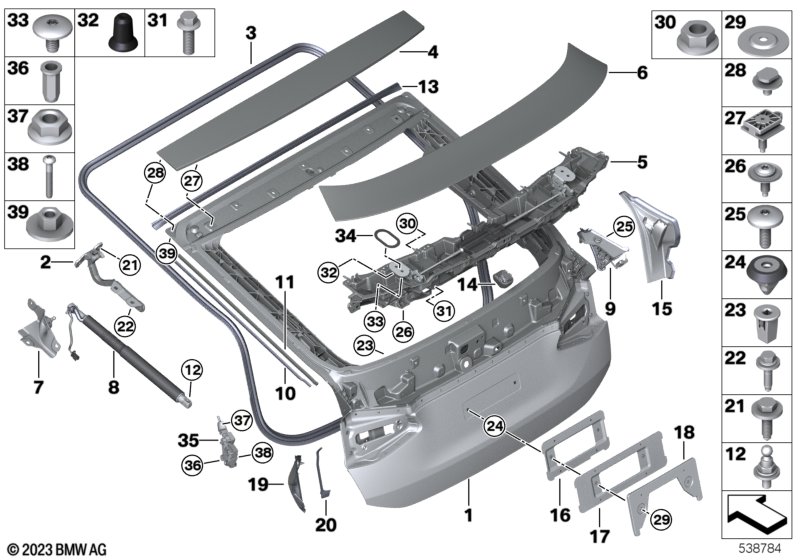

This Trunk lid technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 620dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid, aluminum | 1 | 41007419932 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Sealing strip left | 1 | 51767488735 | Shop at ECS Tuning | ||||||
| -- | Sealing strip right | 1 | 51767488736 | Shop at ECS Tuning | ||||||
| 02 | Left trunk lid hinge | 1 | 41007468691 | Shop at ECS Tuning | ||||||
| 02 | Right trunk lid hinge | 1 | 41007468692 | Shop at ECS Tuning | ||||||
| 03 | Trunk lid sealing | 1 | 51767491282 | Shop at ECS Tuning | ||||||
| 04 | Cover,top | 1 | 51627462961 | Shop at ECS Tuning | ||||||
| 05 | Spoiler module | 1 | 51627397896 | Shop at ECS Tuning | ||||||
| 06 | Spoiler blade primed | 1 | 51627481774 | Shop at ECS Tuning | ||||||
| 07 | Feedback lever left | 1 | 41007468697 | Shop at ECS Tuning | ||||||
| 07 | Feedback lever right | 1 | 41007468698 | Shop at ECS Tuning | ||||||
| 08 | Spindle drive, right | 1 | 11/2019 | 51249482792 | Shop at ECS Tuning | |||||
| 08 | Spindle drive, left | 1 | 11/2019 | 51249482793 | Shop at ECS Tuning | |||||
| 09 | Stopper left | 1 | 51247415353 | Shop at ECS Tuning | ||||||
| 09 | Stopper right | 1 | 51247415354 | Shop at ECS Tuning | ||||||
| 10 | Sealing, trunk lid left | 1 | 51767418957 | Shop at ECS Tuning | ||||||
| 10 | Sealing, trunk lid right | 1 | 51767418958 | Shop at ECS Tuning | ||||||
| 11 | Sealing strip | 2 | 51767440859 | Shop at ECS Tuning | ||||||
| 12 | Ball pin | M10 | 2 | 07147381905 | Shop at ECS Tuning | |||||
| 13 | Seal for roof, rear | 1 | 51767446713 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=Yes S5DMA=Yes S5DNA=Yes |
|||||||||
| 14 | Cover for rearview camera | 1 | 51137415358 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=Yes S5DMA=Yes S5DNA=No |
|||||||||
| 14 | Cover for rearview camera | 1 | 51137415358 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=Yes S5DMA=No S5DNA=Yes |
|||||||||
| 14 | Cover for rearview camera | 1 | 51137415358 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=Yes S5DMA=No S5DNA=No |
|||||||||
| 14 | Cover for rearview camera | 1 | 51137415358 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=No S5DMA=Yes S5DNA=Yes |
|||||||||
| 14 | Cover for rearview camera | 1 | 51137415358 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=No S5DMA=Yes S5DNA=No |
|||||||||
| 14 | Cover for rearview camera | 1 | 51137415358 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Parking assistance system and Parking assistance system Plus |
S3AGA=No S5DMA=No S5DNA=Yes |
|||||||||
| 14 | Cover for rearview camera | 1 | 51137415358 | Shop at ECS Tuning | ||||||
| 15 | Trim, drip rail, left | 1 | 51497438485 | Shop at ECS Tuning | ||||||
| 15 | Trim, drip rail, right | 1 | 51497438486 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Control of number-plate attachment |
L807A=No S992A=Yes |
|||||||||
| 16 | License-plate carrier rear | US | 1 | 51139448724 | Shop at ECS Tuning | |||||
| 19 | Trim cover, trunk lid, left | 1 | 51627430765 | Shop at ECS Tuning | ||||||
| 19 | Trim cover, trunk lid, right | 1 | 51627430766 | Shop at ECS Tuning | ||||||
| 20 | Sealing strip left | 1 | 51767488735 | Shop at ECS Tuning | ||||||
| 20 | Sealing strip right | 1 | 51767488736 | Shop at ECS Tuning | ||||||
| 21 | Hex bolt with washer | M8X30 | 6 | 07143428484 | $1.13 | Shop at ECS Tuning | ||||
| 22 | Hex bolt with washer | M8X36 10.9 | 4 | 07147464977 | Shop at ECS Tuning | |||||
| 23 | Expanding nut | L=15MM, DMAX=12 | 3 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 24 | Expanding nut | 2 | 07147429950 | Shop at ECS Tuning | ||||||
| 25 | Torx screw with washer | ISA M6X18 | 4 | 07146978618 | $2.56 | Shop at ECS Tuning | ||||
| 26 | Oval-head screw with washer | M6X20 | 2 | 03/2023 | 07147406384 | ENDED | Shop at ECS Tuning | |||
| 26 | Oval-head screw with spring washer | M6X20 | 2 | 07145A48F73 | Shop at ECS Tuning | |||||
| 27 | Slider | 7 | 51627436996 | Shop at ECS Tuning | ||||||
| 28 | Fastener | M5X9 | 2 | 07147146461 | $0.65 | Shop at ECS Tuning | ||||
| 29 | Shim | 2 | 51188240761 | $1.10 | Shop at ECS Tuning | |||||
| 30 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 31 | Hex bolt | M6X20-PC-ZNS3 | 9 | 07119908088 | Shop at ECS Tuning | |||||
| 32 | Covering cap | 4 | 51627489620 | Shop at ECS Tuning | ||||||
| 33 | Fillister head screw | M6X12-10.9-MK-Z | 4 | 07147946747 | Shop at ECS Tuning | |||||
| 34 | Seal for rear spoiler | 2 | 51627376983 | Shop at ECS Tuning | ||||||
| 35 | Wedge, rear hatch, left | 1 | 51247433293 | Shop at ECS Tuning | ||||||
| 35 | Wedge, rear hatch, right | 1 | 51247433294 | Shop at ECS Tuning | ||||||
| 36 | Blind rivet nut, flat headed | M6 | 2 | 51248226003 | $2.13 | Shop at ECS Tuning | ||||
| 37 | Hex nut | M6-8-SC-ZNNIV S | 4 | 34506859776 | Shop at ECS Tuning | |||||
| 38 | Oval-head screw with anti-rotation lock | ISA M6X40 | 2 | 52207076848 | $0.67 | Shop at ECS Tuning | ||||
| 39 | Self-locking hex nut | 2 | 07147464983 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
