Trunk lid/closing system for BMW 6 Series G32 GT 630i (2018)

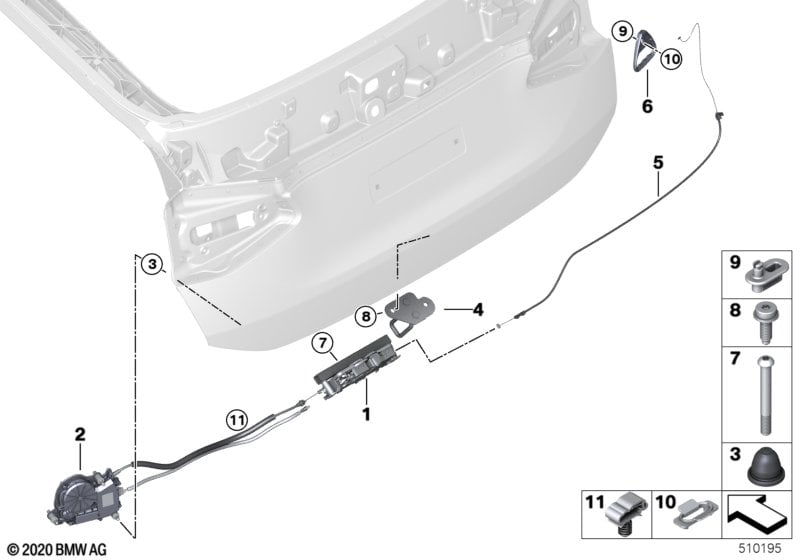

This Trunk lid/closing system technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid lock | 1 | 51247454160 | Shop at ECS Tuning | ||||||
| 02 | Trunk lid power lock drive | 1 | 51247411760 | Shop at ECS Tuning | ||||||
| 03 | Snap-lock coupling | 1 | 63217216997 | $0.30 | Shop at ECS Tuning | |||||
| 04 | Striker trunk lid | 1 | 51247416082 | Shop at ECS Tuning | ||||||
| For vehicles with Emergency release, luggage compartment |
S5DSA=Yes |
|||||||||
| 05 | Bowden cable | 1 | 51247397907 | Shop at ECS Tuning | ||||||
| 06 | Handle f emergency unlocking | 1 | 51247056414 | $7.25 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | M8X65 ZNS3 | 2 | 46717704755 | $6.90 | Shop at ECS Tuning | ||||
| 08 | Cheese head screw self-locking | 2 | 07149227851 | Shop at ECS Tuning | ||||||
| 09 | Clip | 1 | 51247056413 | $1.69 | Shop at ECS Tuning | |||||
| 10 | Washer | 1 | 51247057739 | $1.26 | Shop at ECS Tuning | |||||
| 11 | Tubing support | 2 | 34521164653 | $0.23 | Shop at ECS Tuning | |||||
