Cavity sealings for BMW 8 Series F91 M8 Convertible M8 (2025)

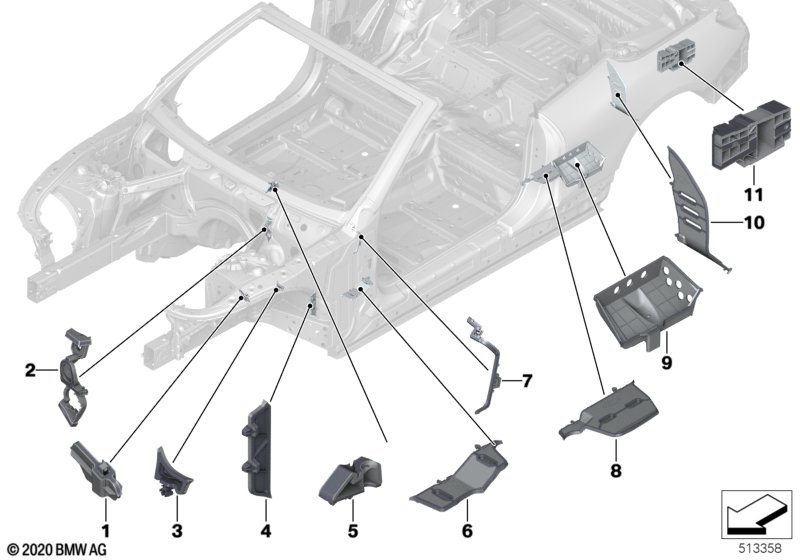

This Cavity sealings technical drawing provides a detailed breakdown of the assembly for the 8 Series F91 M8 Convertible M8. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulded part f wheel housing supp.,front | 1 | 41007342721 | Shop at ECS Tuning | ||||||
| 02 | Seal and insulation mat | D=35MM | 1 | 07147128619 | Shop at ECS Tuning | |||||
| 02 | Seal and insulation mat | D=35MM | 1 | 07147128619 | Shop at ECS Tuning | |||||
| 03 | Shaped part extension engine mount, left | 1 | 41007330415 | Shop at ECS Tuning | ||||||
| 03 | Shaped part engine mount extension right | 1 | 41007330416 | Shop at ECS Tuning | ||||||
| 04 | Shaped part, bulkhead carrier support | 1 | 41007330413 | Shop at ECS Tuning | ||||||
| 05 | Molded air deflector, lateral, left | 1 | 41007416921 | Shop at ECS Tuning | ||||||
| 05 | Molded part windshld panel lateral rght | 1 | 41007416922 | Shop at ECS Tuning | ||||||
| 06 | Molded part column A, bottom int. left | 1 | 41007439885 | Shop at ECS Tuning | ||||||
| 06 | Molded part column A, bottom int. right | 1 | 41007439886 | Shop at ECS Tuning | ||||||
| 07 | Molded part column A left | 1 | 41007439887 | Shop at ECS Tuning | ||||||
| 07 | Molded part column A right | 1 | 41007439888 | Shop at ECS Tuning | ||||||
| 08 | Shaped part, B-pillar, left | 1 | 41007470847 | Shop at ECS Tuning | ||||||
| 08 | Shaped part, B-pillar, right | 1 | 41007470848 | Shop at ECS Tuning | ||||||
| 09 | Water manifold left | 1 | 41009625665 | NoS | Shop at ECS Tuning | |||||
| 09 | Water manifold right | 1 | 41009625666 | NoS | Shop at ECS Tuning | |||||
| 10 | Shaped part wheel well, rear left | 1 | 41007470835 | Shop at ECS Tuning | ||||||
| 10 | Molding, wheelhousing, rear right | 1 | 41007470836 | Shop at ECS Tuning | ||||||
| 11 | Molded section, side member, left | 1 | 41007454221 | NoS | Shop at ECS Tuning | |||||
| 11 | Molded section, side member, right | 1 | 41007454222 | NoS | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
