Cavity sealings for BMW 8 Series F92 M8 Coupé M8 (2025)

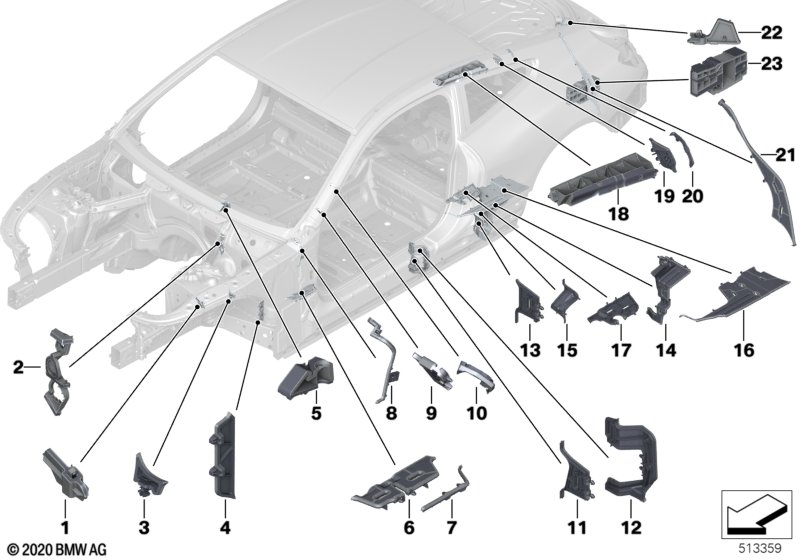

This Cavity sealings technical drawing provides a detailed breakdown of the assembly for the 8 Series F92 M8 Coupé M8. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulded part f wheel housing supp.,front | 1 | 41007342721 | Shop at ECS Tuning | ||||||
| 02 | Seal and insulation mat | D=35MM | 1 | 07147128619 | Shop at ECS Tuning | |||||
| 02 | Seal and insulation mat | D=35MM | 1 | 07147128619 | Shop at ECS Tuning | |||||
| 03 | Shaped part extension engine mount, left | 1 | 41007330415 | Shop at ECS Tuning | ||||||
| 03 | Shaped part engine mount extension right | 1 | 41007330416 | Shop at ECS Tuning | ||||||
| 04 | Shaped part, bulkhead carrier support | 1 | 41007330413 | Shop at ECS Tuning | ||||||
| 05 | Molded air deflector, lateral, left | 1 | 41007416921 | Shop at ECS Tuning | ||||||
| 05 | Molded part windshld panel lateral rght | 1 | 41007416922 | Shop at ECS Tuning | ||||||
| 06 | Molded part column A, bottom int. left | 1 | 41007442001 | Shop at ECS Tuning | ||||||
| 06 | Molded part column A, bottom int. right | 1 | 41007442002 | Shop at ECS Tuning | ||||||
| 07 | Molded part, A-pillar, lower outer | 1 | 41007441997 | Shop at ECS Tuning | ||||||
| 08 | Molded part column A left | 1 | 41007445631 | Shop at ECS Tuning | ||||||
| 08 | Molded part column A right | 1 | 41007445632 | Shop at ECS Tuning | ||||||
| 09 | Molded part column A, interior | 1 | 41007441983 | Shop at ECS Tuning | ||||||
| 10 | Molded part column A, exterior | 1 | 41007441985 | Shop at ECS Tuning | ||||||
| 11 | Molded part f entrance inside | 1 | 41007445597 | Shop at ECS Tuning | ||||||
| 12 | Molded part f entrance, outside left | 1 | 41007441993 | Shop at ECS Tuning | ||||||
| 12 | Molded part f entrance, outside right | 1 | 41007441994 | Shop at ECS Tuning | ||||||
| 13 | Molded part f entrance inside,rear | 1 | 41007445599 | Shop at ECS Tuning | ||||||
| 14 | Moulded part,entrance outside,rear left | 1 | 41009625633 | Shop at ECS Tuning | ||||||
| 14 | Moulded part,entrance outside,rear right | 1 | 41009625634 | Shop at ECS Tuning | ||||||
| 15 | Molded part f entrance rear left | 1 | 41007460307 | Shop at ECS Tuning | ||||||
| 15 | Molded part f entrance rear right | 1 | 41007460308 | Shop at ECS Tuning | ||||||
| 16 | Shaped part reinforcement B-pillar, rgt | 1 | 41009625630 | Shop at ECS Tuning | ||||||
| 16 | Shaped part reinforcement, B-pillar, lft | 1 | 41007441991 | Shop at ECS Tuning | ||||||
| 17 | Molded part, B-pillar, lower left | 1 | 41007442007 | Shop at ECS Tuning | ||||||
| 17 | Molded part, B-pillar, lower right | 1 | 41007442008 | Shop at ECS Tuning | ||||||
| 18 | Left upper column B reinforcement | 1 | 41007465731 | NoS | Shop at ECS Tuning | |||||
| 18 | Right upper column B reinforcement | 1 | 41007465732 | NoS | Shop at ECS Tuning | |||||
| 19 | Molded part column C, interior | 1 | 41007441987 | Shop at ECS Tuning | ||||||
| 20 | Molded part column C, exterior | 1 | 41007441989 | Shop at ECS Tuning | ||||||
| 21 | Moulded part f rear wheel housing | 1 | 41007442005 | Shop at ECS Tuning | ||||||
| 22 | Moulded part f rear window frame | 1 | 41007418645 | Shop at ECS Tuning | ||||||
| 23 | Molded section, side member, left | 1 | 41007454221 | NoS | Shop at ECS Tuning | |||||
| 23 | Molded section, side member, right | 1 | 41007454222 | NoS | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
