Side frame section, inner for BMW 8 Series G15 Coupé 840dX (2023)

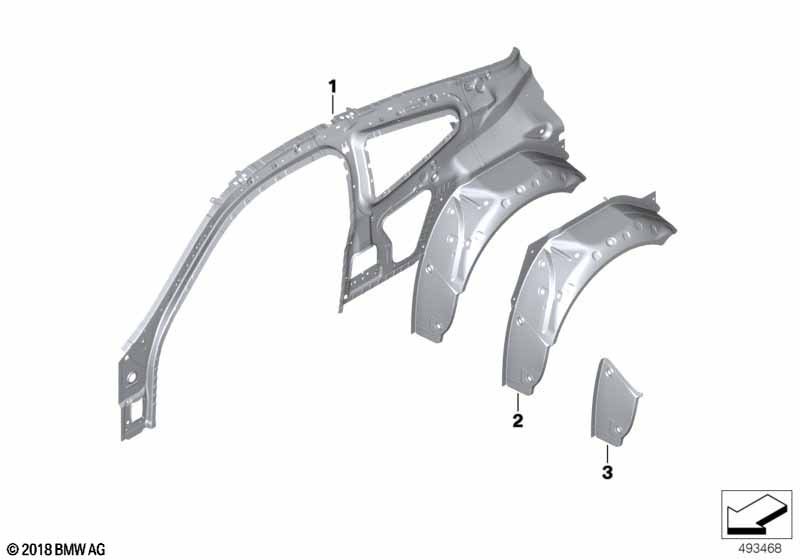

This Side frame section, inner technical drawing provides a detailed breakdown of the assembly for the 8 Series G15 Coupé 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left interior side frame | 1 | 41007494419 | Shop at ECS Tuning | ||||||
| 01 | Right interior side frame | 1 | 41007494420 | Shop at ECS Tuning | ||||||
| 02 | Wheel arch outer rear left | 1 | 41007494423 | Shop at ECS Tuning | ||||||
| 02 | Wheel arch outer rear right | 1 | 41007494424 | Shop at ECS Tuning | ||||||
| 03 | End panel, wheelhousing, outer left | 1 | 41007494427 | Shop at ECS Tuning | ||||||
| 03 | End panel, wheelhousing, outer right | 1 | 41007494428 | Shop at ECS Tuning |
