Hood seals for BMW 8 Series G15 Coupé 840iX (2025)

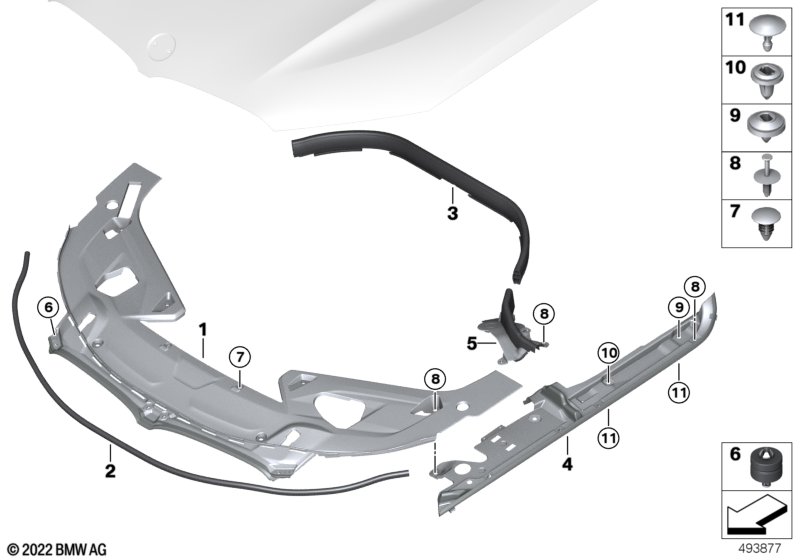

This Hood seals technical drawing provides a detailed breakdown of the assembly for the 8 Series G15 Coupé 840iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover engine compartment center | 1 | 51767465212 | Shop at ECS Tuning | ||||||
| 02 | Seal, engine bonnet, front | 1 | 51767419000 | Shop at ECS Tuning | ||||||
| 03 | Seal, hood, rear | 1 | 51767347394 | Shop at ECS Tuning | ||||||
| 04 | Sealing side panel, left | 1 | 51767371509 | Shop at ECS Tuning | ||||||
| 04 | Sealing side panel right | 1 | 51767371510 | Shop at ECS Tuning | ||||||
| 05 | Gasket hood side left | 1 | 51767349601 | Shop at ECS Tuning | ||||||
| 05 | Gasket hood side right | 1 | 51767349602 | Shop at ECS Tuning | ||||||
| 06 | Stop buffer | 3 | 51237162448 | $3.52 | Shop at ECS Tuning | |||||
| 07 | Plug-in mount | 2 | 07148497647 | Shop at ECS Tuning | ||||||
| 08 | Expanding rivet | 26 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 09 | Clip, bottom part | 2 | 07147469317 | Shop at ECS Tuning | ||||||
| 10 | Clip, bottom part | 4 | 07147446452 | Shop at ECS Tuning | ||||||
| 11 | Clip, upper part | 6 | 51717048316 | $1.45 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G15 Coupé 840iX Hood seals?
- This technical diagram illustrates the Hood seals within the Bodywork group for the 8 Series G15 Coupé 840iX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Cover engine compartment center (Part #51767465212).
- Which models use the hardware listed in this Hood seals?
- The hardware and components featured in the Hood seals are specific to the 8 Series G15 Coupé 840iX produced during 2025. These technical specifications ensure that parts like the Cover engine compartment center (51767465212) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hood seals assembly?
- Each item in the Hood seals corresponds to the numbered list below the illustration. For the 8 Series G15 Coupé 840iX, you can identify the Cover engine compartment center by locating its position on the schematic, which then links to the official BMW part number 51767465212 for the Bodywork section.
