Rear door - hinge/door brake for BMW 3 Series G28 Sedan LCI 320Ld (2025)

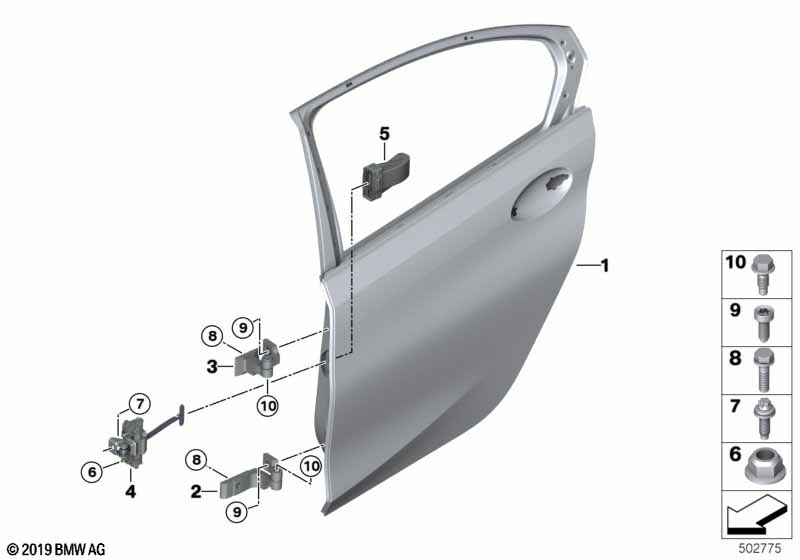

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan LCI 320Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door rear left | 1 | 41517482279 | Shop at ECS Tuning | ||||||
| 01 | Door rear right | 1 | 41517482280 | Shop at ECS Tuning | ||||||
| 02 | Left lower rear door hinge | 1 | 41527284543 | +core | Shop at ECS Tuning | |||||
| 02 | Right lower rear door hinge | 1 | 41527284544 | +core | Shop at ECS Tuning | |||||
| 03 | Left upper rear door hinge | 1 | 41527284545 | +core | Shop at ECS Tuning | |||||
| 03 | Right upper rear door hinge | 1 | 41527284546 | +core | Shop at ECS Tuning | |||||
| 04 | Rear door brake | 2 | 51227450445 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Grommet, door brake, rear | 1 | 51227453998 | Shop at ECS Tuning | ||||||
| 05 | Grommet, door brake, rear | 2 | 51227453998 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | M6 | 4 | 07129909275 | Shop at ECS Tuning | |||||
| 07 | Torx-bolt with washer | ASA M8X22 | 2 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Hexagon screw with taper | M12X35 | 2 | 07148499258 | Shop at ECS Tuning | |||||
| 09 | Torx-countersunk head screw | ISA M10X28 | 2 | 07147266068 | Shop at ECS Tuning | |||||
| 10 | Hexagon screw with flange | M8X24 | 4 | 07147284478 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G28 Sedan LCI 320Ld Rear door - hinge/door brake?
- This technical diagram illustrates the Rear door - hinge/door brake within the Bodywork group for the 3 Series G28 Sedan LCI 320Ld produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Door rear left (Part #41517482279).
- Which models use the hardware listed in this Rear door - hinge/door brake?
- The hardware and components featured in the Rear door - hinge/door brake are specific to the 3 Series G28 Sedan LCI 320Ld produced during 2025. These technical specifications ensure that parts like the Door rear left (41517482279) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear door - hinge/door brake assembly?
- Each item in the Rear door - hinge/door brake corresponds to the numbered list below the illustration. For the 3 Series G28 Sedan LCI 320Ld, you can identify the Door rear left by locating its position on the schematic, which then links to the official BMW part number 41517482279 for the Bodywork section.
