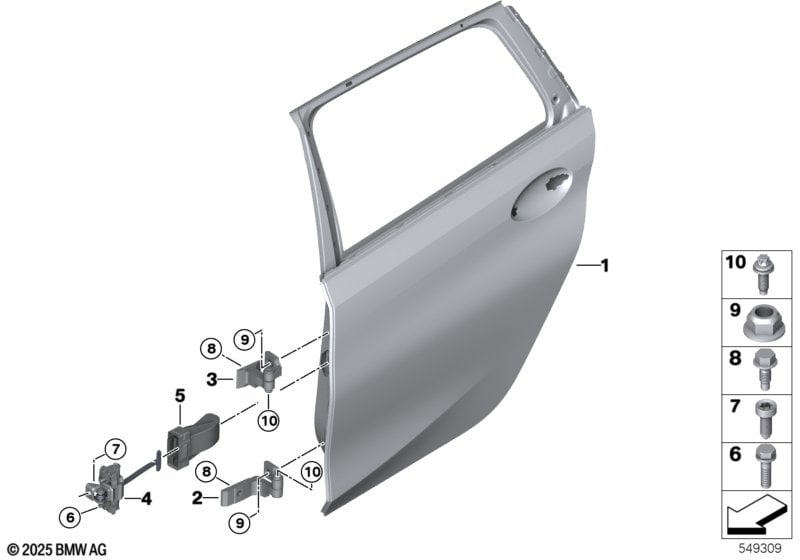

Rear door - hinge/door brake for BMW 3 Series G21 Touring LCI M340dX (2025)
This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door rear left | 1 | 41517482281 | Shop at ECS Tuning | ||||||
| 01 | Door rear right | 1 | 41517482282 | Shop at ECS Tuning | ||||||
| 02 | Left lower rear door hinge | 1 | 41527284543 | +core | Shop at ECS Tuning | |||||
| 02 | Right lower rear door hinge | 1 | 41527284544 | +core | Shop at ECS Tuning | |||||
| 03 | Left upper rear door hinge | 1 | 41527284545 | +core | Shop at ECS Tuning | |||||
| 03 | Right upper rear door hinge | 1 | 41527284546 | +core | Shop at ECS Tuning | |||||
| 04 | Rear door brake | 2 | 51227432206 | Shop at ECS Tuning | ||||||
| 06 | Hexagon screw with taper | M12X35 | 2 | 07148499258 | Shop at ECS Tuning | |||||
| 07 | Torx-countersunk head screw | ISA M10X28 | 2 | 07147266068 | Shop at ECS Tuning | |||||
| 08 | Hexagon screw with flange | M8X24 | 4 | 07147284478 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M6 | 4 | 07129909275 | Shop at ECS Tuning | |||||
| 10 | Torx-bolt with washer | ASA M8X22 | 2 | 07147248303 | $0.60 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
