Body skeleton for BMW 3 Series G20 Sedan LCI 320i (2025)

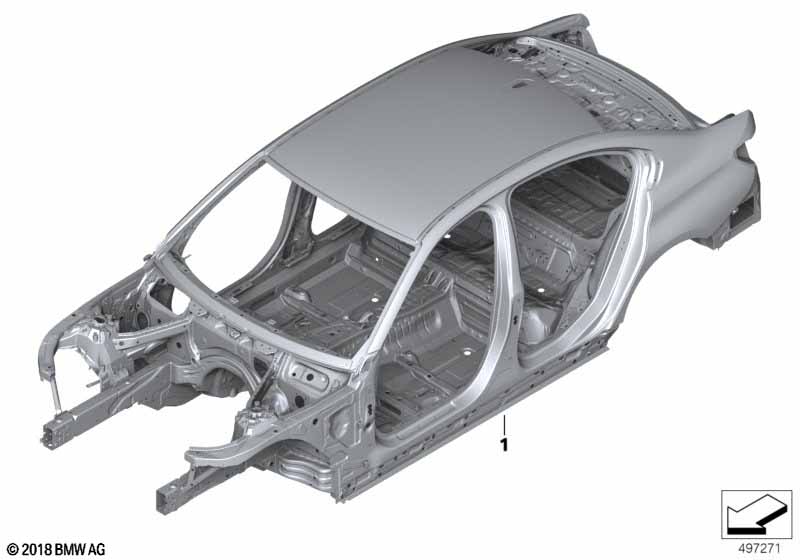

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body skeleton without chassis number | 1 | 41007488007 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636310 | Shop at ECS Tuning | ||||||
| The following information is required when ordering: - Vehicle identification number |
||||||||||
| 01 | Body skeleton with chassis number | 1 | 41002468796 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636310 | Shop at ECS Tuning | ||||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 01 | Body skeleton without chassis number | 1 | 41007488008 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636310 | Shop at ECS Tuning | ||||||
| For vehicles with Glass roof, electrical The following information is required when ordering: - Vehicle identification number |
S403A=Yes |
|||||||||
| 01 | Body skeleton with chassis number | 1 | 41002468800 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636310 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
