Body skeleton for BMW 3 Series G21 Touring LCI 330e (2024)

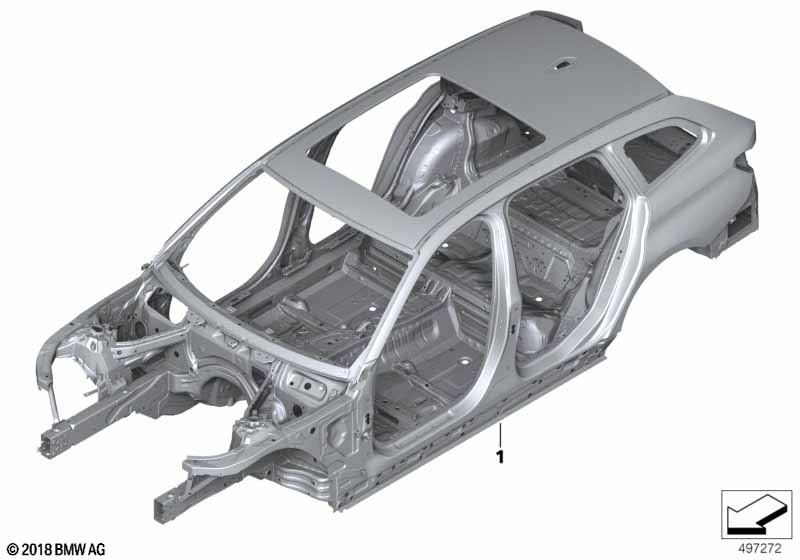

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body frame without VIN | PHEV | 1 | 07/2024 | 41009649744 | NoS | Shop at ECS Tuning | |||
| 01 | Body frame with VIN | PHEV | 1 | 07/2024 | 41009649847 | NoS | Shop at ECS Tuning | |||
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 01 | Body frame with VIN | PHEV/SHD | 1 | 07/2024 | 41009649848 | NoS | Shop at ECS Tuning | |||
| 01 | Body frame without VIN | PHEV/SHD | 1 | 07/2024 | 41009649745 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring LCI 330e Body skeleton?
- This technical diagram illustrates the Body skeleton within the Bodywork group for the 3 Series G21 Touring LCI 330e produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Body frame without VIN (Part #41009649744).
- Which models use the hardware listed in this Body skeleton?
- The hardware and components featured in the Body skeleton are specific to the 3 Series G21 Touring LCI 330e produced during 2024. These technical specifications ensure that parts like the Body frame without VIN (41009649744) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Body skeleton assembly?
- Each item in the Body skeleton corresponds to the numbered list below the illustration. For the 3 Series G21 Touring LCI 330e, you can identify the Body frame without VIN by locating its position on the schematic, which then links to the official BMW part number 41009649744 for the Bodywork section.
