Splash wall parts for BMW 3 Series G21 Touring 330d (2022)

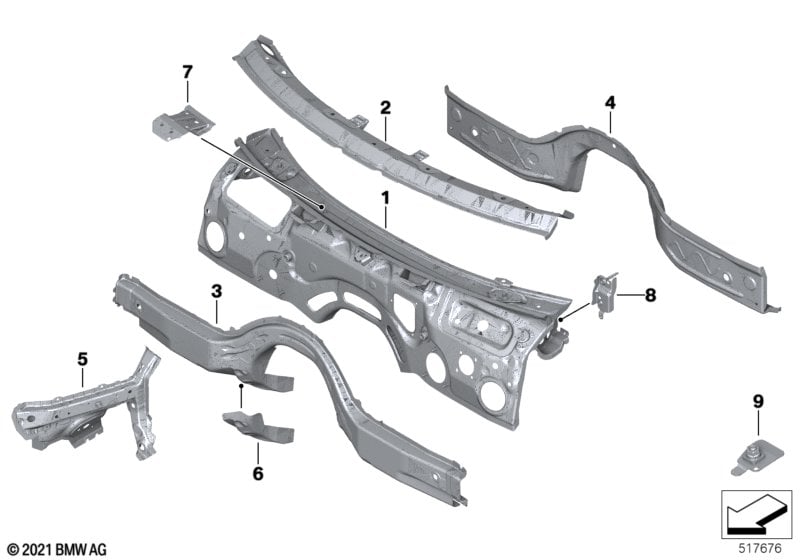

This Splash wall parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Splash wall | 1 | 41007486651 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover for steering column opening | 1 | 51717446434 | NoS | Shop at ECS Tuning | |||||
| -- | Ground pin 48V | M8X13 | 1 | 41009880323 | Shop at ECS Tuning | |||||
| 02 | Cross member, splash wall | 1 | 41007486655 | NoS | Shop at ECS Tuning | |||||
| 03 | Supporting strut, front wall | 1 | 41007486649 | NoS | Shop at ECS Tuning | |||||
| 04 | Reinforcement for bulkhead, lower | 1 | 41007488016 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bracket for accelerator pedal module top | 1 | 41007488044 | NoS | Shop at ECS Tuning | |||||
| -- | Earth pin | M8X12 | 1 | 07147182215 | Shop at ECS Tuning | |||||
| 05 | Left engine compartment partition | 1 | 41007486645 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 05 | Right engine compartment partition | 1 | 41007486646 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Ground pin 48V | M8X13 | 1 | 41009880323 | Shop at ECS Tuning | |||||
| 06 | Attachment, left trans. mount bracket | 1 | 41007488035 | NoS | Shop at ECS Tuning | |||||
| 06 | Attachment, right trans. mount bracket | 1 | 41007488036 | NoS | Shop at ECS Tuning | |||||
| 07 | Mount, strut tower brace, left | 1 | 41007488025 | NoS | Shop at ECS Tuning | |||||
| 07 | Mount, strut tower brace, right | 1 | 41007488026 | NoS | Shop at ECS Tuning | |||||
| 08 | Mount, supporting tube, left | 1 | 41007488023 | NoS | Shop at ECS Tuning | |||||
| 08 | Mount, supporting tube, right | 1 | 41007488024 | NoS | Shop at ECS Tuning | |||||
| 09 | Ground pin 48V | M8X13 | X | 41009880323 | Shop at ECS Tuning | |||||
