Side frame section, inner for BMW 3 Series G28 Sedan 330Li (2022)
This Side frame section, inner technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan 330Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left interior side frame | 1 | 41007487347 | NoS | Shop at ECS Tuning | |||||
| 01 | Right interior side frame | 1 | 41007487348 | NoS | Shop at ECS Tuning | |||||
| 02 | Wheel arch outer rear left | 1 | 41007488085 | Shop at ECS Tuning | ||||||
| 02 | Wheel arch outer rear right | 1 | 41007488086 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Threaded welding stud | M6X14 | 3 | 07147186109 | Shop at ECS Tuning | |||||
| 03 | Interior left column B | 1 | 41007491029 | NoS | Shop at ECS Tuning | |||||
| 03 | Column B inside right | 1 | 41007491030 | NoS | Shop at ECS Tuning | |||||
| 04 | Side member, inner left | 1 | 41007487335 | NoS | Shop at ECS Tuning | |||||
| 04 | Side member, inner right | 1 | 41007487336 | NoS | Shop at ECS Tuning | |||||
| 05 | A-pillar inner, rear left | 1 | 41007488083 | NoS | Shop at ECS Tuning | |||||
| 05 | A-pillar inner, rear right | 1 | 41007488084 | NoS | Shop at ECS Tuning | |||||
| 06 | Connector, rear window frame, upper left | 1 | 41007488087 | NoS | Shop at ECS Tuning | |||||
| 06 | Connector, rear window frame, top right | 1 | 41007488088 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G28 Sedan 330Li Side frame section, inner?

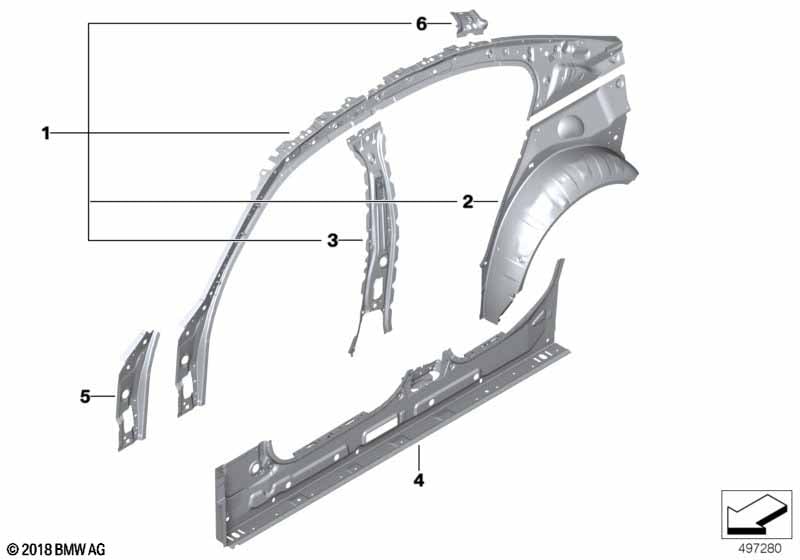

- This technical diagram illustrates the Side frame section, inner within the Bodywork group for the 3 Series G28 Sedan 330Li produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Left interior side frame (Part #41007487347).
- Which models use the hardware listed in this Side frame section, inner?
- The hardware and components featured in the Side frame section, inner are specific to the 3 Series G28 Sedan 330Li produced during 2022. These technical specifications ensure that parts like the Left interior side frame (41007487347) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side frame section, inner assembly?
- Each item in the Side frame section, inner corresponds to the numbered list below the illustration. For the 3 Series G28 Sedan 330Li, you can identify the Left interior side frame by locating its position on the schematic, which then links to the official BMW part number 41007487347 for the Bodywork section.
