Side frame section, center for BMW 3 Series G20 Sedan 330e (2019)

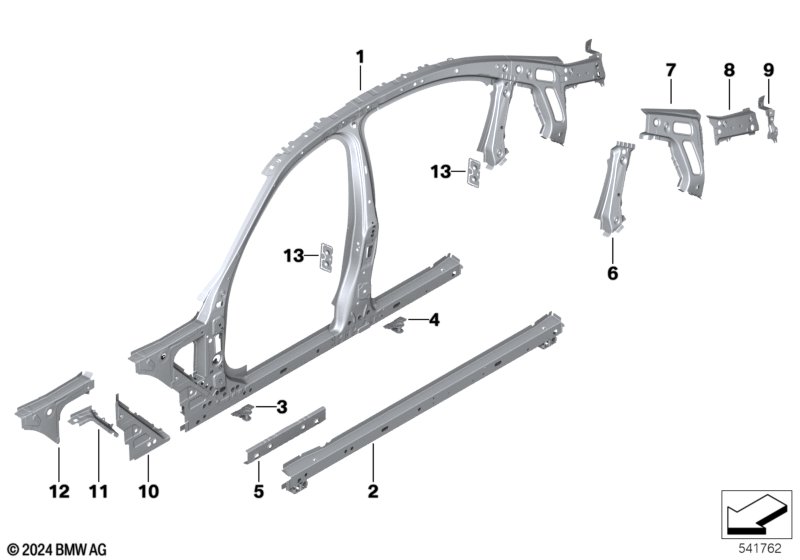

This Side frame section, center technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, center left | 1 | 41007487351 | ENDED, NoS | Shop at ECS Tuning | |||||
| 01 | Side frame, center right | 1 | 41007487352 | ENDED, NoS | Shop at ECS Tuning | |||||
| 02 | Reinforcement, entry, left | 1 | 41007487363 | ENDED, NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Reinforcement, entry, right | 1 | 41007487364 | ENDED, NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bulkhead side member front | 1 | 41007488082 | Shop at ECS Tuning | ||||||
| 05 | Bulkhead side member front | 2 | 41007488082 | NoS | Shop at ECS Tuning | |||||
| 06 | C-pillar support, left | 1 | 41007488095 | NoS | Shop at ECS Tuning | |||||
| 06 | C-pillar support, right | 1 | 41007488096 | NoS | Shop at ECS Tuning | |||||
| 07 | C-pillar reinforcement, left | 1 | 41007488097 | NoS | Shop at ECS Tuning | |||||
| 07 | C-pillar reinforcement, right | 1 | 41007488098 | NoS | Shop at ECS Tuning | |||||
| 08 | Tension band column C, left | 1 | 41007488101 | NoS | Shop at ECS Tuning | |||||
| 08 | Tension band column C, right | 1 | 41007488102 | NoS | Shop at ECS Tuning | |||||
| 09 | Bracket, tension spring, left | 1 | 41007488103 | Shop at ECS Tuning | ||||||
| 09 | Bracket, tension spring, right | 1 | 41007488104 | Shop at ECS Tuning | ||||||
| 10 | Support, carrier support, left | 1 | 41007488099 | Shop at ECS Tuning | ||||||
| 10 | Support, carrier support, right | 1 | 41007488100 | Shop at ECS Tuning | ||||||
| 11 | Bulkhead plate, A-pillar left | 1 | 41007488105 | Shop at ECS Tuning | ||||||
| 11 | Bulkhead plate, A-pillar right | 1 | 41007488106 | Shop at ECS Tuning | ||||||
| 12 | Extension, wheel housing strut left | 1 | 41007488093 | Shop at ECS Tuning | ||||||
| 12 | Extension, wheel housing strut right | 1 | 41007488094 | Shop at ECS Tuning | ||||||
| 13 | Threaded plate, striker | 2 | 41009852058 | NoS | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
