Side frame section, center for BMW 3 Series G21 Touring 330d (2020)

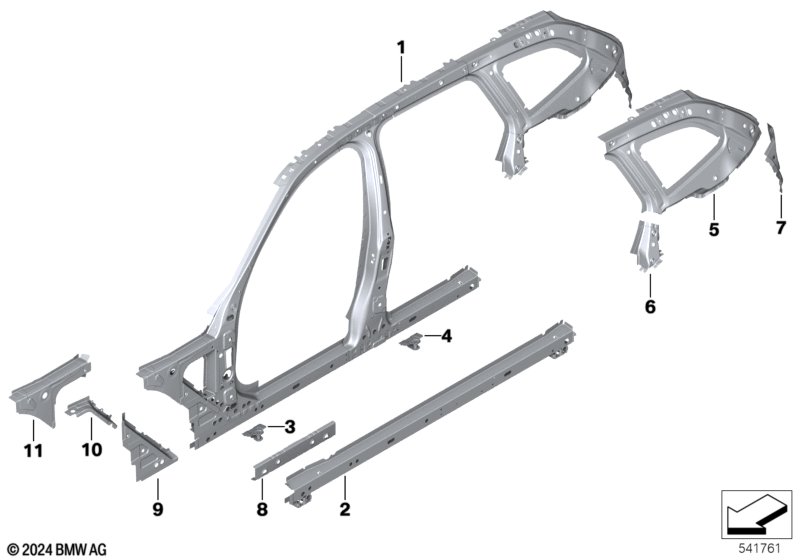

This Side frame section, center technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, center left | 1 | 41007487355 | NoS | Shop at ECS Tuning | |||||
| 01 | Side frame, center right | 1 | 41007487356 | NoS | Shop at ECS Tuning | |||||
| 02 | Reinforcement, entry, left | 1 | 41007491041 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Reinforcement, entry, right | 1 | 41007491042 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bulkhead side member front | 1 | 41007488082 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Bulkhead side member front | 1 | 41007488082 | Shop at ECS Tuning | ||||||
| 05 | reinforcement D-pillar inside left | 1 | 41007488107 | NoS | Shop at ECS Tuning | |||||
| 05 | reinforcement D-pillar inside right | 1 | 41007488108 | NoS | Shop at ECS Tuning | |||||
| 06 | C-pillar support, left | 1 | 41007488109 | NoS | Shop at ECS Tuning | |||||
| 06 | C-pillar support, right | 1 | 41007488110 | NoS | Shop at ECS Tuning | |||||
| 07 | Support for D-pillar, left | 1 | 41007488113 | NoS | Shop at ECS Tuning | |||||
| 07 | Support for D-pillar, right | 1 | 41007488114 | NoS | Shop at ECS Tuning | |||||
| 08 | Bulkhead side member front | 2 | 41007488082 | NoS | Shop at ECS Tuning | |||||
| 09 | Support, carrier support, left | 1 | 41007488099 | Shop at ECS Tuning | ||||||
| 09 | Support, carrier support, right | 1 | 41007488100 | Shop at ECS Tuning | ||||||
| 10 | Bulkhead plate, A-pillar left | 1 | 41007488105 | Shop at ECS Tuning | ||||||
| 10 | Bulkhead plate, A-pillar right | 1 | 41007488106 | Shop at ECS Tuning | ||||||
| 11 | Extension, wheel housing strut left | 1 | 41007488093 | Shop at ECS Tuning | ||||||
| 11 | Extension, wheel housing strut right | 1 | 41007488094 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring 330d Side frame section, center?
- This technical diagram illustrates the Side frame section, center within the Bodywork group for the 3 Series G21 Touring 330d produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Side frame, center left (Part #41007487355).
- Which models use the hardware listed in this Side frame section, center?
- The hardware and components featured in the Side frame section, center are specific to the 3 Series G21 Touring 330d produced during 2020. These technical specifications ensure that parts like the Side frame, center left (41007487355) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side frame section, center assembly?
- Each item in the Side frame section, center corresponds to the numbered list below the illustration. For the 3 Series G21 Touring 330d, you can identify the Side frame, center left by locating its position on the schematic, which then links to the official BMW part number 41007487355 for the Bodywork section.
