Partition trunk/Floor parts for BMW 3 Series G20 Sedan LCI 330eX (2023)

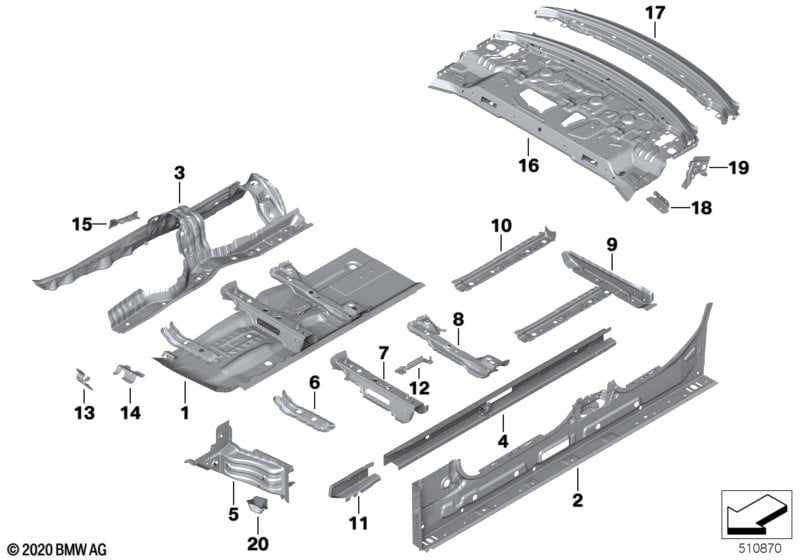

This Partition trunk/Floor parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor panel left | 1 | 41007487119 | NoS | Shop at ECS Tuning | |||||
| 01 | Floor panel right | 1 | 41007487120 | NoS | Shop at ECS Tuning | |||||
| 02 | Side member, inner left | PHEV | 1 | 41007487327 | NoS | Shop at ECS Tuning | ||||
| 02 | Side member, inner right | PHEV | 1 | 41007487328 | NoS | Shop at ECS Tuning | ||||
| 03 | Bracket for transmission mount | 1 | 41007487126 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Earth pin | M8X12 | 1 | 07147182215 | Shop at ECS Tuning | |||||
| 04 | Reinforcement, entry, left | 1 | 41007487131 | NoS | Shop at ECS Tuning | |||||
| 04 | Reinforcement, entry, right | 1 | 41007487132 | NoS | Shop at ECS Tuning | |||||
| 05 | Joint, side frame, left | 1 | 41007486613 | NoS | Shop at ECS Tuning | |||||
| 05 | Joint, side frame, right | 1 | 41007486614 | NoS | Shop at ECS Tuning | |||||
| 05 | Joint, side frame, left | 1 | 41009879899 | NoS | Shop at ECS Tuning | |||||
| 05 | Joint, side frame, right | 1 | 41009879900 | NoS | Shop at ECS Tuning | |||||
| 06 | Reinforcement, tunnel, front left | 1 | 41007488049 | NoS | Shop at ECS Tuning | |||||
| 06 | Reinforcement, tunnel, front right | 1 | 41007488050 | NoS | Shop at ECS Tuning | |||||
| 07 | Left front seat console | 1 | 41007487115 | NoS | Shop at ECS Tuning | |||||
| 07 | Right front seat console | 1 | 41007487116 | NoS | Shop at ECS Tuning | |||||
| 08 | Left rear seat console | 1 | 41007487111 | NoS | Shop at ECS Tuning | |||||
| 08 | Right rear seat console | 1 | 41007487112 | NoS | Shop at ECS Tuning | |||||
| 10 | Extension for rear engine mount | 1 | 41007492749 | NoS | Shop at ECS Tuning | |||||
| 11 | Reinforcement plate, rocker panel, left | 1 | 41007488039 | Shop at ECS Tuning | ||||||
| 11 | Reinforcement plate, rocker panel, right | 1 | 41007488040 | Shop at ECS Tuning | ||||||
| 11 | Reinforcement plate, rocker panel, left | 1 | 41009854729 | NoS | Shop at ECS Tuning | |||||
| 11 | Reinforcement plate, rocker panel, right | 1 | 41009854730 | NoS | Shop at ECS Tuning | |||||
| 12 | Bracket for central bass, left | 1 | 41007488047 | NoS | Shop at ECS Tuning | |||||
| 12 | Bracket for central bass, right | 1 | 41007488048 | NoS | Shop at ECS Tuning | |||||
| 13 | Bracket for accelerator pedal module top | 1 | 41007488044 | NoS | Shop at ECS Tuning | |||||
| 14 | Bracket, accelerator pedal module bottom | 1 | 41007488051 | NoS | Shop at ECS Tuning | |||||
| 15 | Bracket f shifting arm bearing | 1 | 41007444012 | NoS | Shop at ECS Tuning | |||||
| 16 | Partition, upper trunk | 1 | 41007487307 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Mount, belt retractor, rear left | 1 | 41007488059 | Shop at ECS Tuning | ||||||
| -- | Mount, belt retractor, rear right | 1 | 41007488060 | Shop at ECS Tuning | ||||||
| 17 | Rear window frame bottom part | 1 | 41007488075 | NoS | Shop at ECS Tuning | |||||
| 19 | Mount, belt retractor, rear left | 1 | 41007488059 | NoS | Shop at ECS Tuning | |||||
| 19 | Mount, belt retractor, rear right | 1 | 41007488060 | NoS | Shop at ECS Tuning | |||||
