Mounting parts for trunk floor panel for BMW 3 Series G20 Sedan 330e (2019)

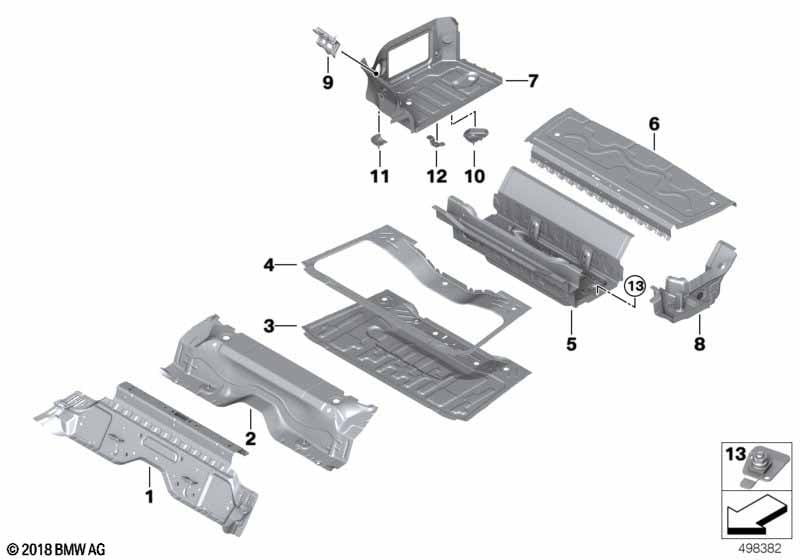

This Mounting parts for trunk floor panel technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor pan cross member, rear | 1 | 41007487299 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Earth pin | M6X12 | 1 | 41248185432 | Shop at ECS Tuning | |||||
| 02 | Front cross member for rear axle carrier | PHEV | 1 | 07/2024 | 41007487234 | NoS | Shop at ECS Tuning | |||
| 04 | Front trunk floor | PHEV | 1 | 41007488076 | NoS | Shop at ECS Tuning | ||||
| 05 | Luggage compartment pan | PHEV | 1 | 41007487224 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Earth pin | M6X12 | 1 | 41248185432 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet nut, countersunk head | M8 | 1 | 07147206553 | Shop at ECS Tuning | |||||
| 06 | Luggage compartment floor, rear | 1 | 41009478471 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 15 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 4 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Blind rivet N6 | 150 ST. | 12 | 83192158655 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Coarse-thread stud | L=14,2MM | 5 | 07147133425 | Shop at ECS Tuning | |||||
| 07 | Luggage compartment floor side right | PHEV | 1 | 41007487184 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 20 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 10 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Coarse-thread stud | L=14,2MM | 5 | 07147133425 | Shop at ECS Tuning | |||||
| -- | Threaded welding stud | M6X22 | 5 | 07147305206 | Shop at ECS Tuning | |||||
| -- | Water outlet grommet | D=25MM | 1 | 07147374650 | Shop at ECS Tuning | |||||
| -- | Bracket activated Carbon container | M6 | 1 | 41007431655 | Shop at ECS Tuning | |||||
| -- | Mount SCR container, front | 1 | 41007488078 | Shop at ECS Tuning | ||||||
| -- | Bracket SCR fluid tank, rear right rear | 1 | 41009630408 | Shop at ECS Tuning | ||||||
| 07 | Luggage compartment floor, side, left | 1 | 41009626541 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Water outlet grommet | D=25MM | 1 | 07147374650 | Shop at ECS Tuning | |||||
| 08 | Mount, rear subframe, left | 1 | 41009448833 | NoS | Shop at ECS Tuning | |||||
| 08 | Mount, rear subframe, right | 1 | 41009448834 | NoS | Shop at ECS Tuning | |||||
| 09 | Bracket for B+ junction point | 1 | 41009448831 | NoS | Shop at ECS Tuning | |||||
| 10 | Bracket SCR fluid tank, rear right rear | 1 | 12/2020 | 41008495844 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bracket SCR fluid tank, rear left | 1 | 41008495843 | Shop at ECS Tuning | ||||||
| 10 | Bracket SCR fluid tank, rear right rear | 1 | 41009630408 | Shop at ECS Tuning | ||||||
| 11 | Mount SCR container, front | 2 | 41007488078 | Shop at ECS Tuning | ||||||
| 12 | Bracket activated Carbon container | M6 | 2 | 41007431655 | Shop at ECS Tuning | |||||
| 13 | Ground pin 48V | M8X13 | X | 41009880323 | Shop at ECS Tuning | |||||
