Rear wheelhouse/floor parts for BMW 3 Series G20 Sedan 330e (2020)

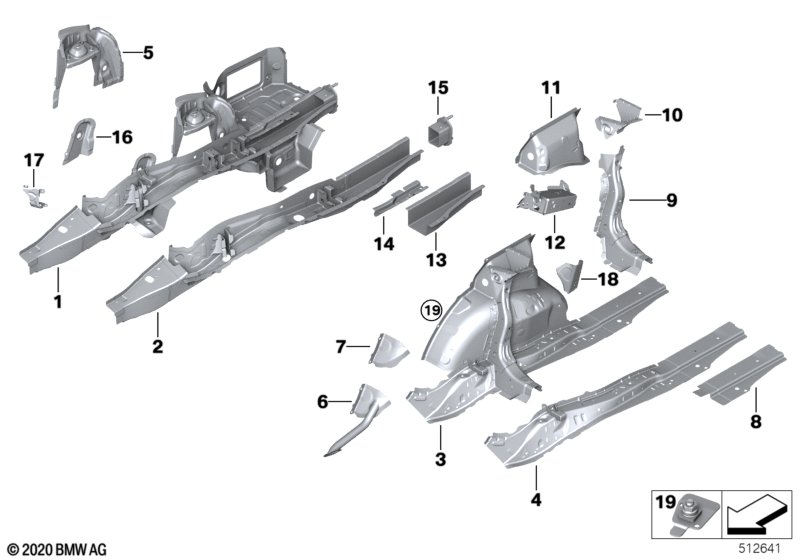

This Rear wheelhouse/floor parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support structure, left | 1 | 07/2024 | 41007487165 | NoS | Shop at ECS Tuning | ||||
| 01 | Support structure, right | 1 | 07/2024 | 41007487166 | NoS | Shop at ECS Tuning | ||||
| 02 | Side member, lower left | 1 | 41007487143 | NoS | Shop at ECS Tuning | |||||
| 02 | Side member, lower right | 1 | 41007487144 | NoS | Shop at ECS Tuning | |||||
| 03 | Rear left wheelhouse, inner half | 1 | 41007487213 | NoS | Shop at ECS Tuning | |||||
| 03 | Rear right wheelhouse, inner half | PHEV | 1 | 41007487218 | NoS | Shop at ECS Tuning | ||||
| 04 | Side member, top left | 1 | 41007487201 | NoS | Shop at ECS Tuning | |||||
| 04 | Side member, top right | 1 | 41007487202 | NoS | Shop at ECS Tuning | |||||
| 05 | Support, wheelhouse left | 1 | 41007487191 | NoS | Shop at ECS Tuning | |||||
| 05 | Support, wheelhouse right | PHEV | 1 | 41007487196 | NoS | Shop at ECS Tuning | ||||
| 07 | Wheelhouse extension, right | PHEV | 1 | 41007488077 | NoS | Shop at ECS Tuning | ||||
| 08 | Extension, side member, upper left | 1 | 41007488053 | NoS | Shop at ECS Tuning | |||||
| 08 | Extension, side member, upper right | 1 | 41007488054 | NoS | Shop at ECS Tuning | |||||
| 09 | Support, wheelhouse left | 1 | 41007487205 | NoS | Shop at ECS Tuning | |||||
| 09 | Support, wheelhouse right | 1 | 41007487206 | NoS | Shop at ECS Tuning | |||||
| 10 | Bracket, trunk partition left | 1 | 41007488061 | NoS | Shop at ECS Tuning | |||||
| 10 | Bracket, trunk partition right | 1 | 41007488062 | NoS | Shop at ECS Tuning | |||||
| 11 | Reinforcement wheel well top left | 1 | 41007488069 | NoS | Shop at ECS Tuning | |||||
| 11 | Reinforcement wheel well top right | 1 | 41007488070 | NoS | Shop at ECS Tuning | |||||
| 13 | Extension, side member, lower left | 1 | 41007488055 | NoS | Shop at ECS Tuning | |||||
| 13 | Extension, side member, lower right | 1 | 41007488056 | NoS | Shop at ECS Tuning | |||||
| 14 | Reinforcement for side member, left | 1 | 41008491917 | NoS | Shop at ECS Tuning | |||||
| 14 | Reinforcement for side member, right | 1 | 41008491918 | NoS | Shop at ECS Tuning | |||||
| 15 | Mount, bumper left | 1 | 12/2020 | 41007413085 | ENDED | Shop at ECS Tuning | ||||
| 15 | Mount, bumper right | 1 | 12/2020 | 41007413086 | ENDED | Shop at ECS Tuning | ||||
| 15 | Mount, bumper left | 1 | 41009630049 | Shop at ECS Tuning | ||||||
| 15 | Mount, bumper right | 1 | 41009630050 | Shop at ECS Tuning | ||||||
| 16 | Reinforcement wheelhousing left | 1 | 41007488057 | NoS | Shop at ECS Tuning | |||||
| 16 | Reinforcement wheelhousing right | 1 | 41007488058 | NoS | Shop at ECS Tuning | |||||
| 17 | Holder, brake hose, left | 1 | 41007488065 | Shop at ECS Tuning | ||||||
| 17 | Holder, brake hose, right | 1 | 41007488066 | Shop at ECS Tuning | ||||||
| 19 | Ground pin 48V | M8X13 | X | 41009880323 | Shop at ECS Tuning | |||||
| 19 | Earth pin | M6X12 | X | 41248185432 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
