Roof for BMW 3 Series G20 Sedan 320iX (2022)

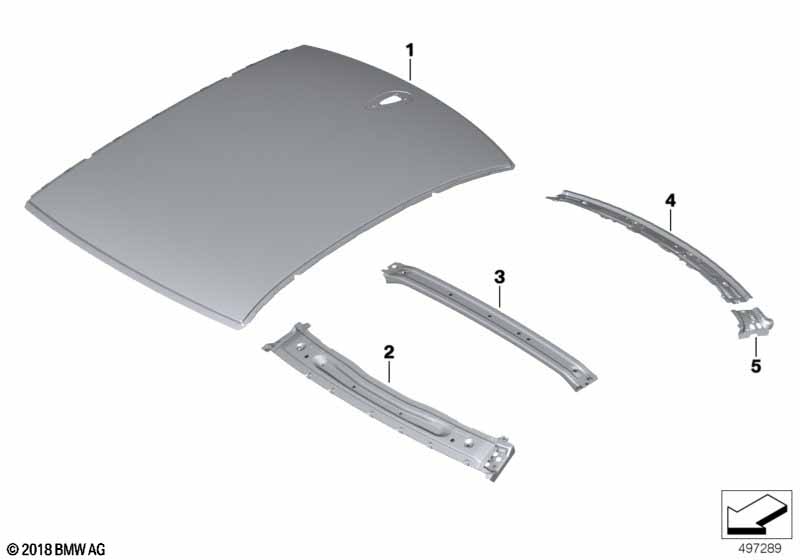

This Roof technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 01 | Roof covering lifting-sliding roof | 1 | 41007487390 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 20 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Seam sealant, brush-applied | 300ML | 1 | 83422409986 | ENDED | Shop at ECS Tuning | ||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical |
S403A=No |
|||||||||
| 01 | Roof cover | 1 | 41007488124 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 20 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Seam sealant, brush-applied | 300ML | 1 | 83422409986 | ENDED | Shop at ECS Tuning | ||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| 02 | Upper apron | 1 | 41007487381 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical |
S403A=No |
|||||||||
| 03 | Roof bow, front | 1 | 41007488125 | NoS | Shop at ECS Tuning | |||||
| 04 | Rear window frame upper part | 1 | 41007487383 | NoS | Shop at ECS Tuning | |||||
| 05 | Connector, rear window frame, upper left | 1 | 41007488087 | NoS | Shop at ECS Tuning | |||||
| 05 | Connector, rear window frame, top right | 1 | 41007488088 | NoS | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 320iX Roof?
- This technical diagram illustrates the Roof within the Bodywork group for the 3 Series G20 Sedan 320iX produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Roof covering lifting-sliding roof (Part #41007487390).
- Which models use the hardware listed in this Roof?
- The hardware and components featured in the Roof are specific to the 3 Series G20 Sedan 320iX produced during 2022. These technical specifications ensure that parts like the Roof covering lifting-sliding roof (41007487390) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof assembly?
- Each item in the Roof corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 320iX, you can identify the Roof covering lifting-sliding roof by locating its position on the schematic, which then links to the official BMW part number 41007487390 for the Bodywork section.
