Roof for BMW 3 Series G21 Touring 330e (2022)

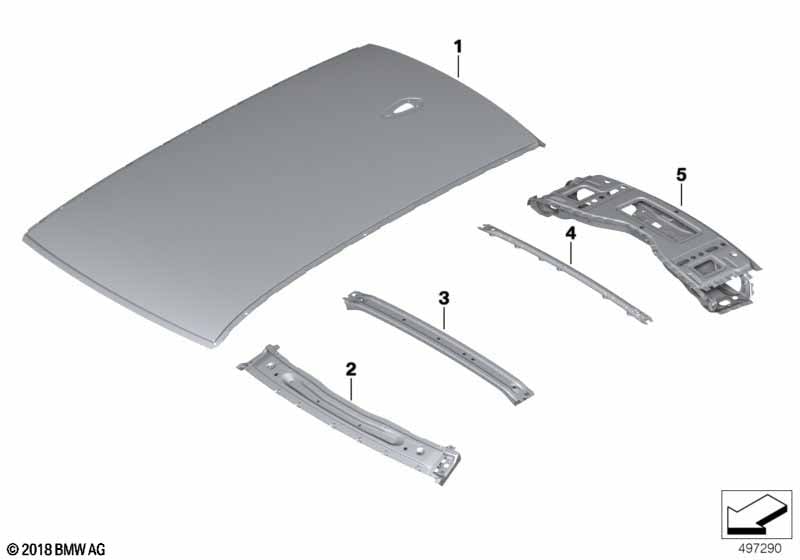

This Roof technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electric panoramic roof |
S402A=No |
|||||||||
| 01 | Roof cover | 1 | 41007488127 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 22 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 4 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Seam sealant, brush-applied | 300ML | 1 | 83422409986 | ENDED | Shop at ECS Tuning | ||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 01 | Roof panel f panoramic roof | 1 | 41007487392 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Activator 205 | 250ML | 1 | 83190030155 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 22 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 4 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Seam sealant, brush-applied | 300ML | 1 | 83422409986 | ENDED | Shop at ECS Tuning | ||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 2 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| 02 | Upper apron | 1 | 41007487381 | NoS | Shop at ECS Tuning | |||||
| 03 | Roof bow, front | 1 | 41007488125 | NoS | Shop at ECS Tuning | |||||
| 04 | Rear roof bow | 1 | 41007488126 | NoS | Shop at ECS Tuning | |||||
| 05 | Rear window frame upper part | 1 | 41007487385 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
