Hood / mounted parts for BMW 1 Series F40 116i (2024)

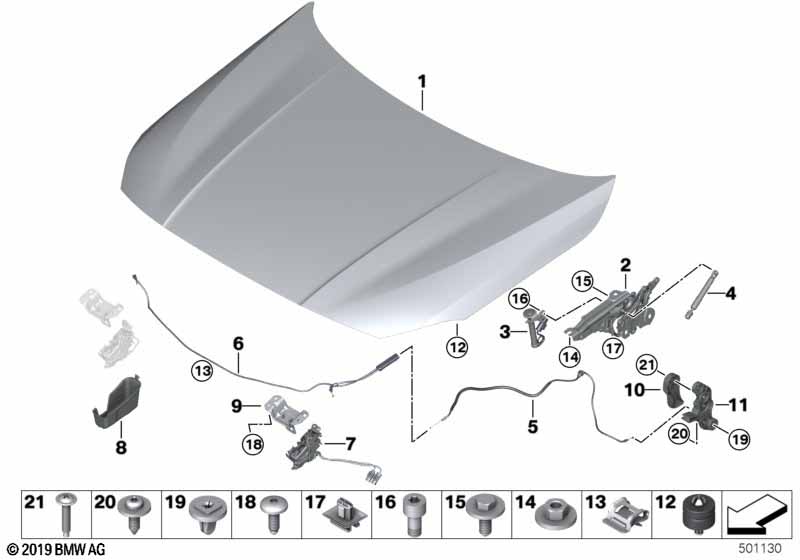

This Hood / mounted parts technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 116i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hood | 1 | 41009492428 | Shop at ECS Tuning | ||||||
| 02 | Left engine hood hinge | 1 | 41009465225 | Shop at ECS Tuning | ||||||
| 02 | Right engine hood hinge | 1 | 41009465226 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 03 | Actor, rear left | 1 | 51237450943 | Shop at ECS Tuning | ||||||
| 03 | Actor, rear right | 1 | 51237450944 | Shop at ECS Tuning | ||||||
| 04 | Gas strut, hood | 2 | 51237473453 | Shop at ECS Tuning | ||||||
| 05 | Bowden cable, hood, rear | 1 | 51237300572 | Shop at ECS Tuning | ||||||
| 06 | Bowden cable, hood, front | 1 | 51237467657 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=No |
|||||||||
| 07 | Lock f hood, left | 1 | 51237468347 | Shop at ECS Tuning | ||||||
| 07 | Lock f hood, right | 1 | 51237468348 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 07 | Lock, hood, active, left | FGS | 1 | 51237468349 | Shop at ECS Tuning | |||||
| 07 | Lock, hood, active, right | FGS | 1 | 51237468350 | Shop at ECS Tuning | |||||
| 08 | Lock panel | 1 | 51767480744 | Shop at ECS Tuning | ||||||
| 09 | Striker with holder | 2 | 51237450925 | Shop at ECS Tuning | ||||||
| 10 | Lever f engine hood mechanism | LL | 1 | 51237309606 | Shop at ECS Tuning | |||||
| 11 | Combination bracket | LL | 1 | 51237326517 | Shop at ECS Tuning | |||||
| 12 | Stop buffer | 2 | 51237162448 | $3.52 | Shop at ECS Tuning | |||||
| 13 | Cable holder | 3 | 07146976165 | $0.66 | Shop at ECS Tuning | |||||
| 14 | Hex nut with plate | M8 | 2 | 07149302543 | Shop at ECS Tuning | |||||
| 15 | Hex bolt with washer | M8X25 | 2 | 07149231837 | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 16 | ISA screw | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
| 17 | Plug-in connection bracket | 2 | 61139285769 | Shop at ECS Tuning | ||||||
| 18 | Combi oval-head machine screw | ISA M8X20 | 6 | 07147234925 | Shop at ECS Tuning | |||||
| 19 | Expanding nut | 7X7 MM | 3 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 20 | Screw | 5X16 | 3 | 07129907471 | Shop at ECS Tuning | |||||
| 21 | Phillips screw f plastic material | TS5X25-ZNNID-SW | 1 | 07146959925 | $0.29 | Shop at ECS Tuning | ||||
