Front door-hinge/door brake for BMW 1 Series F40 116i (2024)

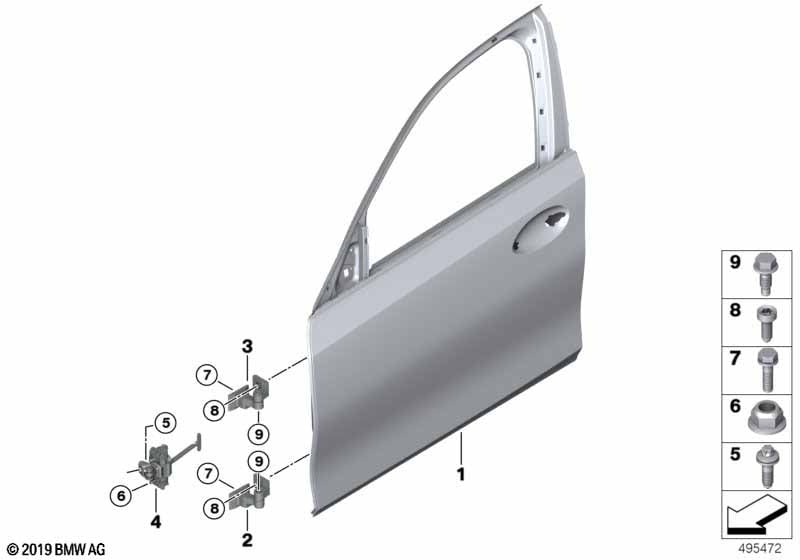

This Front door-hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 116i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door front left | 1 | 41518737059 | Shop at ECS Tuning | ||||||
| 01 | Door front right | 1 | 41518737060 | Shop at ECS Tuning | ||||||
| 02 | Left lower front door hinge | 1 | 41517284535 | +core | Shop at ECS Tuning | |||||
| 02 | Right lower front door hinge | 1 | 41517284536 | +core | Shop at ECS Tuning | |||||
| 03 | Left upper front door hinge | 1 | 41517284533 | +core | Shop at ECS Tuning | |||||
| 03 | Right upper front door hinge | 1 | 41517284534 | +core | Shop at ECS Tuning | |||||
| 04 | Front door brake | 2 | 51217447993 | Shop at ECS Tuning | ||||||
| 05 | Torx-bolt with washer | ASA M8X22 | 2 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M6 | 4 | 07129909275 | Shop at ECS Tuning | |||||
| 07 | Hexagon screw with taper | M12X35 | 2 | 07148499258 | Shop at ECS Tuning | |||||
| 08 | Torx-countersunk head screw | ISA M10X28 | 2 | 07147266068 | Shop at ECS Tuning | |||||
| 09 | Hexagon screw with flange | M8X24 | 2 | 07147284478 | Shop at ECS Tuning |
