Rear door - hinge/door brake for BMW 2 Series F44 Gran Coupé 220i (2024)

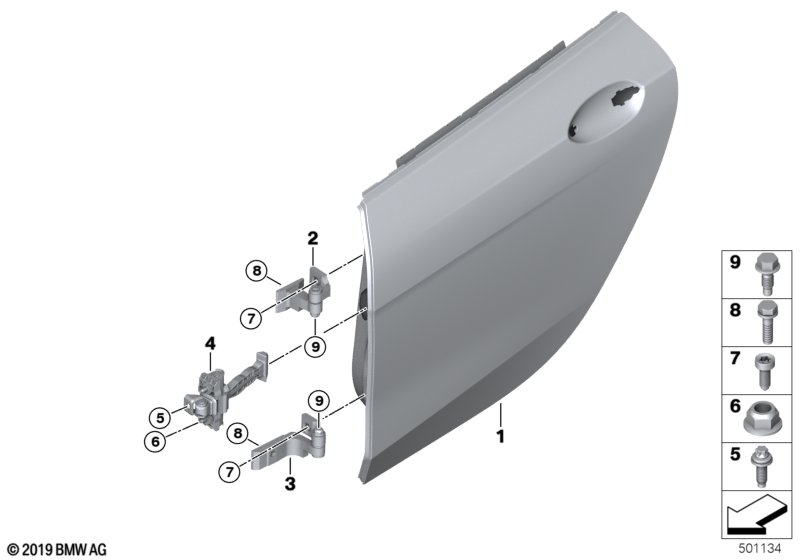

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door rear left | 1 | 11/2024 | 41529482701 | Shop at ECS Tuning | |||||
| 01 | Door rear left | 1 | 41525A70A37 | Shop at ECS Tuning | ||||||
| 01 | Door rear right | 1 | 11/2024 | 41529482702 | Shop at ECS Tuning | |||||
| 01 | Door rear right | 1 | 41525A70A38 | Shop at ECS Tuning | ||||||
| 02 | Left upper rear door hinge | 1 | 41527284545 | +core | Shop at ECS Tuning | |||||
| 02 | Right upper rear door hinge | 1 | 41527284546 | +core | Shop at ECS Tuning | |||||
| 03 | Left lower rear door hinge | 1 | 41527284543 | +core | Shop at ECS Tuning | |||||
| 03 | Right lower rear door hinge | 1 | 41527284544 | +core | Shop at ECS Tuning | |||||
| 04 | Rear door brake | 2 | 51227448039 | Shop at ECS Tuning | ||||||
| 05 | Torx-bolt with washer | ASA M8X22 | 2 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M6 | 4 | 07129909275 | Shop at ECS Tuning | |||||
| 07 | Torx-countersunk head screw | ISA M10X28 | 2 | 07147266068 | Shop at ECS Tuning | |||||
| 08 | Hexagon screw with taper | M12X35 | 2 | 07148499258 | Shop at ECS Tuning | |||||
| 09 | Hexagon screw with flange | M8X24 | 4 | 07147284478 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
