Trunk lid for BMW 1 Series F40 128ti (2024)

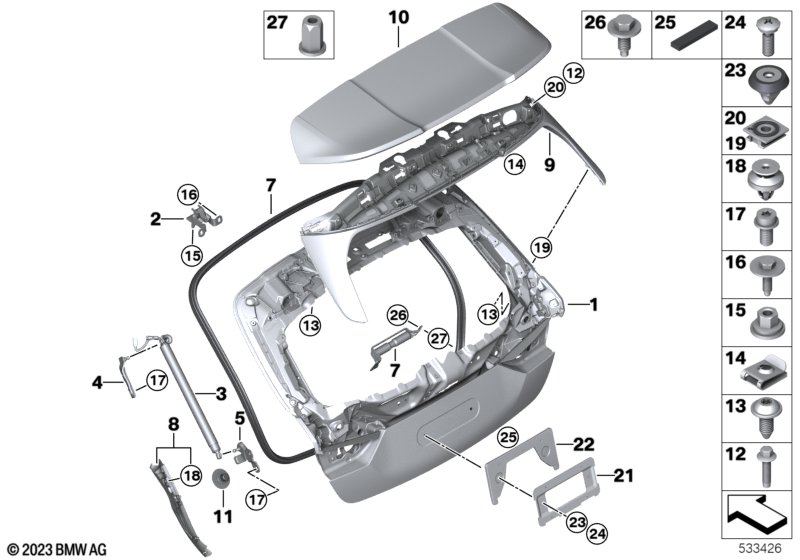

This Trunk lid technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 128ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid | 1 | 41009627390 | Shop at ECS Tuning | ||||||
| 02 | Left trunk lid hinge | 1 | 41007456045 | Shop at ECS Tuning | ||||||
| 02 | Right trunk lid hinge | 1 | 41007456046 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 03 | Spindle drive, left | 1 | 11/2019 | 51249854453 | Shop at ECS Tuning | |||||
| 03 | Spindle drive, right | 1 | 11/2019 | 51249854454 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 03 | Gas pressurized spring f trunk lid | 2 | 51247456042 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 04 | Retaining bracket spindle drive left | 1 | 51247461703 | Shop at ECS Tuning | ||||||
| 04 | Retaining bracket spindle drive right | 1 | 51247461704 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism |
S316A=No |
|||||||||
| 04 | Angle bracket gas pressure spring left | 1 | 51247456051 | Shop at ECS Tuning | ||||||
| 04 | Angle bracket gas pressure spring right | 1 | 51247456052 | Shop at ECS Tuning | ||||||
| 05 | Attachment lever bottom left | 1 | 51247456049 | Shop at ECS Tuning | ||||||
| 05 | Attachment lever bottom right | 1 | 51247456050 | Shop at ECS Tuning | ||||||
| 07 | Trunk lid sealing | 1 | 51767456073 | Shop at ECS Tuning | ||||||
| 08 | Trim cover, trunk lid, left | 1 | 51137466499 | Shop at ECS Tuning | ||||||
| 08 | Trim cover, trunk lid, right | 1 | 51137466500 | Shop at ECS Tuning | ||||||
| 09 | Aeroblade | 1 | 51627456071 | Shop at ECS Tuning | ||||||
| For vehicles with M Rear spoiler |
S754A=Yes |
|||||||||
| 10 | Spoiler, trunk lid, primed | MPA | 1 | 51627490371 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Groove nut | NATURE STD | 1 | 51628496355 | Shop at ECS Tuning | |||||
| -- | Adjustment element | 25 | 1 | 51628496367 | Shop at ECS Tuning | |||||
| For vehicles with M Rear spoiler |
S754A=No |
|||||||||
| 10 | Spoiler, trunk lid, primed | 1 | 51627456070 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Groove nut | NATURE STD | 1 | 51628496355 | Shop at ECS Tuning | |||||
| -- | Adjustment element | 25 | 1 | 51628496367 | Shop at ECS Tuning | |||||
| 11 | Bump stop, trunk lid | 2 | 51247947186 | Shop at ECS Tuning | ||||||
| 12 | Screw | M6X30 | 6 | 07149909495 | Shop at ECS Tuning | |||||
| 13 | Fillister head screw with collar | 6 | 07147187828 | $0.38 | Shop at ECS Tuning | |||||
| 14 | Body nut | ST4,8-9-ZNS3 | 12 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Hex nut | 4 | 07147381066 | Shop at ECS Tuning | ||||||
| 16 | Hex bolt with washer | M8X43 | 8 | 41007489775 | Shop at ECS Tuning | |||||
| 17 | Countersunk screw | 10X20 ZNNID SW | 24 | 07119909406 | Shop at ECS Tuning | |||||
| 18 | Clip | 4 | 07149879483 | Shop at ECS Tuning | ||||||
| 19 | Groove nut | NATURE STD | 6 | 51628496355 | Shop at ECS Tuning | |||||
| 20 | Adjustment element | 25 | 6 | 51628496367 | Shop at ECS Tuning | |||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 21 | License-plate carrier rear | US | 1 | 51139448724 | Shop at ECS Tuning | |||||
| 23 | Expanding nut | 2 | 07147429950 | Shop at ECS Tuning | ||||||
| 24 | Phillips screw f plastic material | TS 5X13 | 4 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 25 | Adhesive pad | 10X45MM | 3 | 51187134021 | $1.00 | Shop at ECS Tuning | ||||
| 27 | Blind rivet nut, flat headed | M6 | 3 | 32411094185 | $1.13 | Shop at ECS Tuning | ||||
