Wheelhouse/engine support for BMW 1 Series F40 116i (2024)

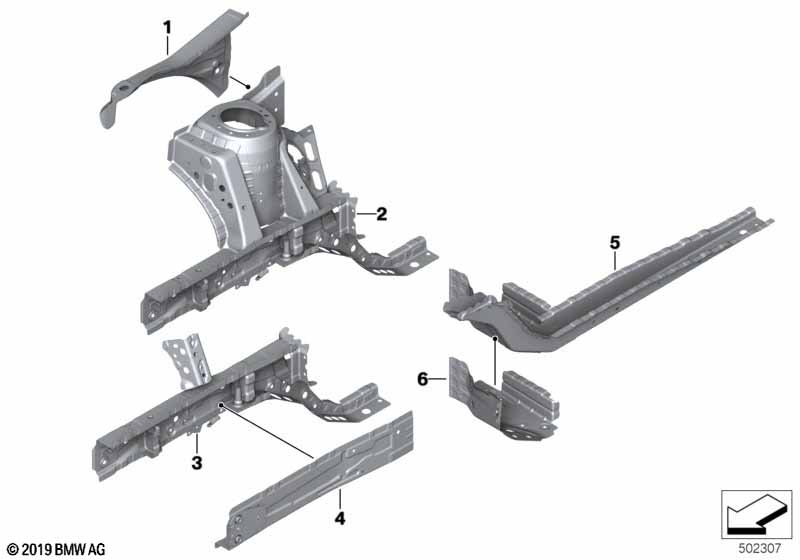

This Wheelhouse/engine support technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 116i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Extension, wheel housing strut left | 1 | 41219498395 | NoS | Shop at ECS Tuning | |||||
| 01 | Extension, wheel housing strut right | 1 | 41219498396 | NoS | Shop at ECS Tuning | |||||
| 02 | Spring strut assembly, front left | 1 | 41007427781 | Shop at ECS Tuning | ||||||
| 02 | Spring strut assembly, front right | 1 | 41007427782 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636313 | Shop at ECS Tuning | ||||||
| The following information is required when ordering: - Vehicle identification number |
||||||||||
| 02 | Shock tower, front right, with VIN | 1 | 41002406072 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636313 | Shop at ECS Tuning | ||||||
| 03 | Exterior left engine support | 1 | 41007386987 | Shop at ECS Tuning | ||||||
| 03 | Exterior right engine support | 1 | 41007386988 | Shop at ECS Tuning | ||||||
| 04 | Left interior engine support | 1 | 41007426415 | Shop at ECS Tuning | ||||||
| 04 | Right interior engine support | 1 | 41007426416 | Shop at ECS Tuning | ||||||
| 05 | Rear left engine support | 1 | 41007386991 | Shop at ECS Tuning | ||||||
| 05 | Rear right engine support | 1 | 41007386992 | Shop at ECS Tuning | ||||||
| 06 | Connection pcs, wheel house/entrance,lft | 1 | 41007360135 | Shop at ECS Tuning | ||||||
| 06 | Connection pcs,wheel house/entrance,rght | 1 | 41007360136 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
