Splash wall parts for BMW 2 Series F44 Gran Coupé 220i (2024)

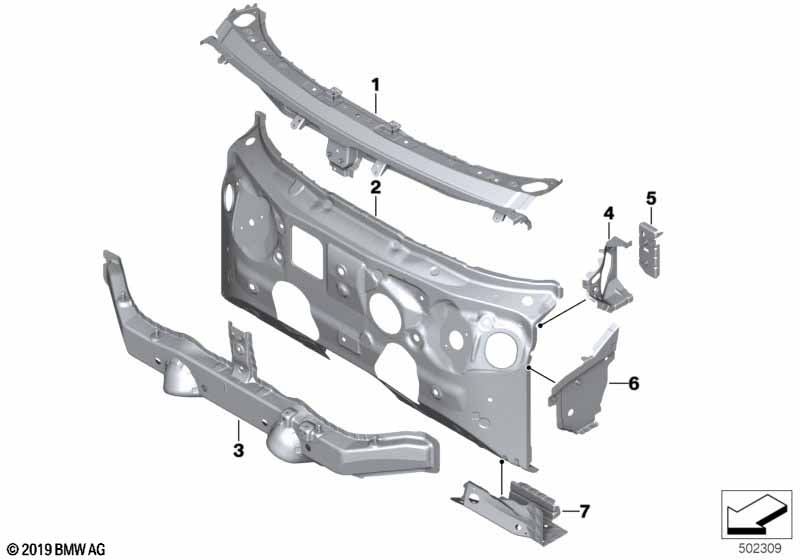

This Splash wall parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cross member, splash wall | 1 | 41007955543 | NoS | Shop at ECS Tuning | |||||
| 02 | Splash wall | 1 | 41007387000 | Shop at ECS Tuning | ||||||
| 03 | Supporting strut, front wall | PHEV | 1 | 41008494726 | NoS | Shop at ECS Tuning | ||||
| 04 | Reinforcing mount f supporting tube,left | 1 | 41007360137 | Shop at ECS Tuning | ||||||
| 04 | Reinforcing mount f supporting tube,rig. | 1 | 41007360138 | Shop at ECS Tuning | ||||||
| 05 | Mount, supporting tube, right | 1 | 41007360150 | Shop at ECS Tuning | ||||||
| 05 | Mount, supporting tube, left | 1 | 41007360151 | Shop at ECS Tuning | ||||||
| 06 | A-column, inner front left | 1 | 41007955539 | NoS | Shop at ECS Tuning | |||||
| 06 | A-column, inner front right | 1 | 41007955540 | NoS | Shop at ECS Tuning | |||||
| 07 | Connection pcs, wheel house/entrance,lft | 1 | 41007360135 | Shop at ECS Tuning | ||||||
| 07 | Connection pcs,wheel house/entrance,rght | 1 | 41007360136 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F44 Gran Coupé 220i Splash wall parts?
- This technical diagram illustrates the Splash wall parts within the Bodywork group for the 2 Series F44 Gran Coupé 220i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Cross member, splash wall (Part #41007955543).
- Which models use the hardware listed in this Splash wall parts?
- The hardware and components featured in the Splash wall parts are specific to the 2 Series F44 Gran Coupé 220i produced during 2024. These technical specifications ensure that parts like the Cross member, splash wall (41007955543) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Splash wall parts assembly?
- Each item in the Splash wall parts corresponds to the numbered list below the illustration. For the 2 Series F44 Gran Coupé 220i, you can identify the Cross member, splash wall by locating its position on the schematic, which then links to the official BMW part number 41007955543 for the Bodywork section.
