Body-side frame for BMW 2 Series F44 Gran Coupé 218i (2024)

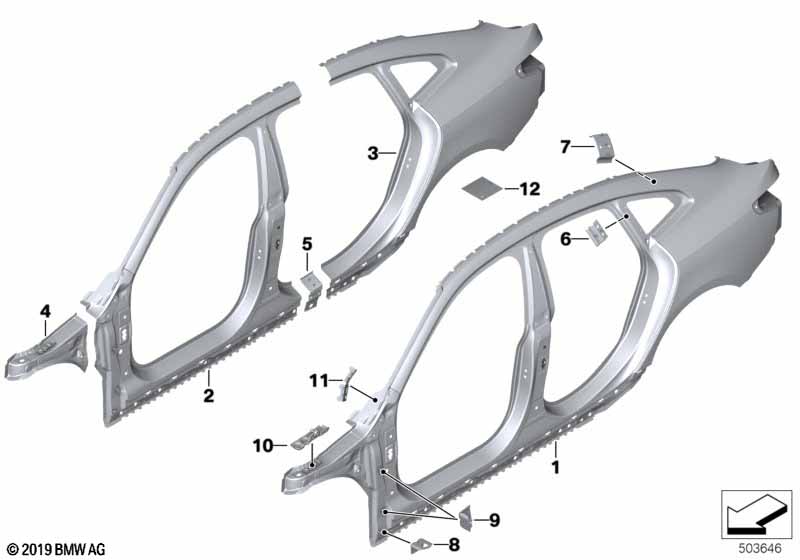

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 218i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side frame, exterior, left | 1 | 41219498431 | Shop at ECS Tuning | ||||||
| 01 | Side frame, exterior, right | 1 | 41219498432 | Shop at ECS Tuning | ||||||
| 02 | Left exterior column A | 1 | 41219498461 | Shop at ECS Tuning | ||||||
| 02 | Column A exterior right | 1 | 41219498462 | Shop at ECS Tuning | ||||||
| 03 | Left rear side panel | 1 | 41219498457 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 6 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Punch rivet | N5 | 31 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 42 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Seam sealant, brush-applied | 300ML | 1 | 83422409986 | ENDED | Shop at ECS Tuning | ||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 8 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Trunk lid sealing | 1 | 51767224108 | Shop at ECS Tuning | ||||||
| -- | Plastic nut for coarse threaded pin | M6 | 8 | 07147336362 | Shop at ECS Tuning | |||||
| -- | Reinforcement plate, rocker panel, left | 1 | 41009466215 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41009466217 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, D-pillar, left | 1 | 41009466219 | Shop at ECS Tuning | ||||||
| 03 | Right rear side panel | 1 | 41219498458 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 6 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Punch rivet | N5 | 31 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 42 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Seam sealant, brush-applied | 300ML | 1 | 83422409986 | ENDED | Shop at ECS Tuning | ||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 8 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Trunk lid sealing | 1 | 51767224108 | Shop at ECS Tuning | ||||||
| -- | Plastic nut for coarse threaded pin | M6 | 8 | 07147336362 | Shop at ECS Tuning | |||||
| -- | Reinforcement plate, rocker panel, right | 1 | 41009466216 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41009466218 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, D-pillar, right | 1 | 41009466220 | Shop at ECS Tuning | ||||||
| 04 | Extension, wheel housing strut left | 1 | 41219498395 | NoS | Shop at ECS Tuning | |||||
| 04 | Extension, wheel housing strut right | 1 | 41219498396 | NoS | Shop at ECS Tuning | |||||
| 05 | Reinforcement plate, rocker panel, left | 1 | 41009466215 | Shop at ECS Tuning | ||||||
| 05 | Reinforcement plate, rocker panel, right | 1 | 41009466216 | Shop at ECS Tuning | ||||||
| 06 | Reinforcement plate, C-pillar, left | 1 | 41009466217 | Shop at ECS Tuning | ||||||
| 06 | Reinforcement plate, C-pillar, right | 1 | 41009466218 | Shop at ECS Tuning | ||||||
| 07 | Reinforcement plate, D-pillar, left | 1 | 41009466219 | Shop at ECS Tuning | ||||||
| 07 | Reinforcement plate, D-pillar, right | 1 | 41009466220 | Shop at ECS Tuning | ||||||
| 08 | Bracket, side panel column A | 2 | 01/2025 | 41117174365 | $1.85 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 4 | 01/2025 | 83190301421 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 2 | 01/2025 | 83192158654 | Shop at ECS Tuning | ||||
| -- | Cleaner R1 | 100ML | 2 | 01/2025 | 83192211217 | Shop at ECS Tuning | ||||
| 08 | Bracket, side panel column A | 2 | 41009624949 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 4 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 50 ML | 2 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 2 | 83192211217 | Shop at ECS Tuning | |||||
| 09 | Bracket, side panel, bottom | 4 | 41217284401 | Shop at ECS Tuning | ||||||
| 10 | Bracket for gas spring, left | 1 | 51238497233 | NoS | Shop at ECS Tuning | |||||
| 10 | Bracket for gas spring, right | 1 | 51238497234 | NoS | Shop at ECS Tuning | |||||
| 11 | Side panel bracket, front left 3 | 1 | 41008497231 | Shop at ECS Tuning | ||||||
| 11 | Side panel bracket, front right 3 | 1 | 41008497232 | Shop at ECS Tuning | ||||||
| 12 | Reinforcement plate, universal | X | 41217275563 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
