Tailgate closing system for BMW 2 Series F44 Gran Coupé 220i (2024)

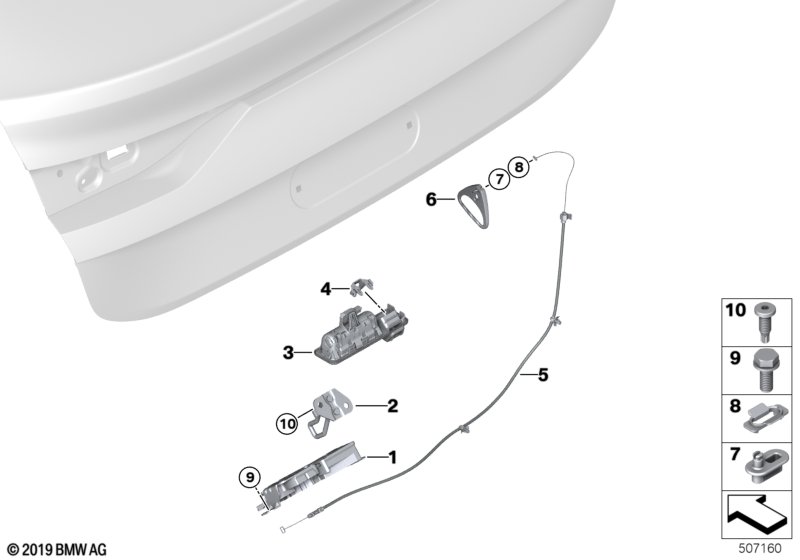

This Tailgate closing system technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid lock | 1 | 51247383283 | Shop at ECS Tuning | ||||||
| 02 | Striker trunk lid | 1 | 51247416448 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system |
S5DMA=Yes |
|||||||||
| 03 | Boot lid/tailgate pushbutton | RFK | 1 | 51247405634 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system |
S5DMA=No |
|||||||||
| 03 | Boot lid/tailgate pushbutton | BASIS | 1 | 51247405633 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Important notice! Observe product information. Use "Only in conjunction with" parts. |
S5DMA=No |
|||||||||
| 03 | Boot lid/tailgate pushbutton | RFK | 1 | 51247405634 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Dummy trim, camera system | SCHWARZ | 1 | 66535A50B79 | Shop at ECS Tuning | |||||
| -- | Counter support rearview camera | 1 | 51247405635 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system |
S5DMA=Yes |
|||||||||
| 04 | Counter support rearview camera | 1 | 51247405635 | Shop at ECS Tuning | ||||||
| For vehicles with Emergency release, luggage compartment |
S5DSA=Yes |
|||||||||
| 05 | Bowden cable, emergency unlocking | 1 | 51247487041 | Shop at ECS Tuning | ||||||
| 06 | Handle f emergency unlocking | 1 | 51247056414 | $7.25 | Shop at ECS Tuning | |||||
| 07 | Clip | 1 | 51247056413 | $1.69 | Shop at ECS Tuning | |||||
| 08 | Washer | 1 | 51247057739 | $1.26 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M8X20-U1-8.8 | 2 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 10 | Fillister-head screw | M8 | 2 | 07147233975 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F44 Gran Coupé 220i Tailgate closing system?
- This technical diagram illustrates the Tailgate closing system within the Bodywork group for the 2 Series F44 Gran Coupé 220i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Trunk lid lock (Part #51247383283).
- Which models use the hardware listed in this Tailgate closing system?
- The hardware and components featured in the Tailgate closing system are specific to the 2 Series F44 Gran Coupé 220i produced during 2024. These technical specifications ensure that parts like the Trunk lid lock (51247383283) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tailgate closing system assembly?
- Each item in the Tailgate closing system corresponds to the numbered list below the illustration. For the 2 Series F44 Gran Coupé 220i, you can identify the Trunk lid lock by locating its position on the schematic, which then links to the official BMW part number 51247383283 for the Bodywork section.
