Radio remote control for BMW MINI Countryman F60 Cooper (2020)

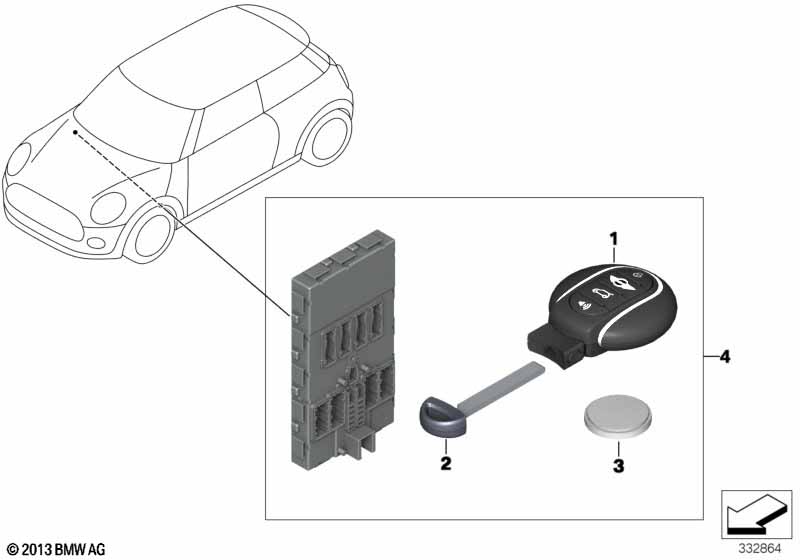

This Radio remote control technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For defective parts: Send ID transmitter including button cell or notes stating which button cell is installed. For vehicles with Comfort access |
S322A=Yes |
||||||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 01 | Radio remote control | 434 MHZ KO CA | 1 | 03/2019 | 07/2022 | 66125A407B5 | ENDED | Shop at ECS Tuning | ||
| 01 | Radio remote control basic | 434 MHZ KO CA | 1 | 03/2019 | 66125A59E12 | Shop at ECS Tuning | ||||
| For vehicles with Radio frequency 315 MHz |
S876A=Yes |
|||||||||
| 01 | Radio remote control basic | 315 MHZ JP CA | 1 | 03/2019 | 66125A59E08 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Radio frequency 315 MHz |
L802A=No S876A=No |
|||||||||
| 01 | Radio remote control basic | 434 MHZ CA | 1 | 03/2019 | 66125A56075 | Shop at ECS Tuning | ||||
| 02 | Integrated key | 1 | 03/2019 | 51217359252 | Shop at ECS Tuning | |||||
| The battery is to be installed directly in the corresponding control unit/key on site. It is not permitted to sell the battery if it is not installed. Old batteries must be properly disposed of. |
||||||||||
| 03 | Battery | 3,2 V - CR2032 | 1 | 03/2019 | 66126912985 | $8.38 | Shop at ECS Tuning | |||
| For vehicles with National version Korea Before ordering the Body Domain Controller BDC, for vehicles from 11/2016 on which are equipped with a Head Unit High 2 , the PUMA measure 62960142 must be observed. |
L802A=Yes |
|||||||||
| 04 | Set of codes with BDC control unit | 434 MHZ B KO CA | 1 | 03/2019 | 51212461421 | Shop at ECS Tuning | ||||
| For vehicles with Radio frequency 315 MHz Before ordering the Body Domain Controller BDC, for vehicles from 11/2016 on which are equipped with a Head Unit High 2 , the PUMA measure 62960142 must be observed. |
S876A=Yes |
|||||||||
| 04 | Set of codes with BDC control unit | 315 MHZ B JP CA | 1 | 03/2019 | 51212461419 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Radio frequency 315 MHz Before ordering the Body Domain Controller BDC, for vehicles from 11/2016 on which are equipped with a Head Unit High 2 , the PUMA measure 62960142 must be observed. |
L802A=No S876A=No |
|||||||||
| 04 | Set of codes with BDC control unit | 434 MHZ B CA | 1 | 03/2019 | 51212461420 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
