Body skeleton for BMW 4 Series G82 M4 Coupé M4 (2024)

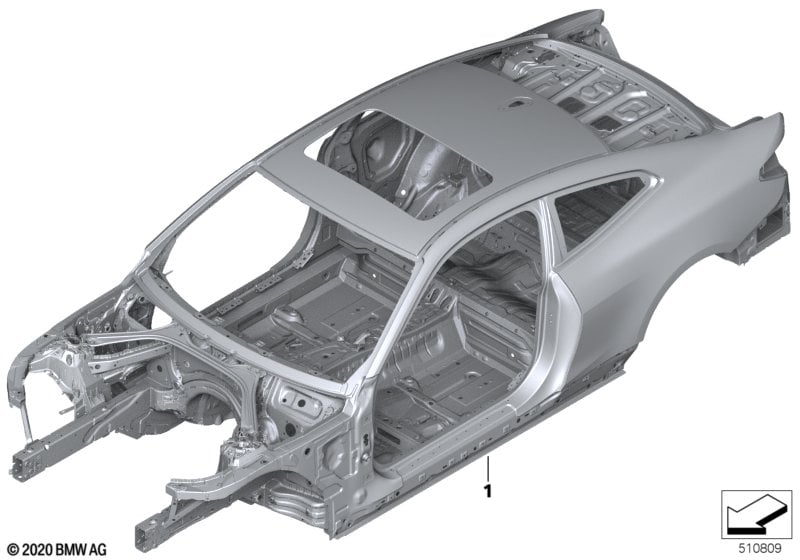

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body skeleton without chassis number | 1 | 41008083544 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636310 | Shop at ECS Tuning | ||||||
| The following information is required when ordering: - Vehicle identification number only together with roof outer skin |
||||||||||
| 01 | Body skeleton with chassis number | 1 | 41009629790 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636310 | Shop at ECS Tuning | ||||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 01 | Body skeleton without chassis number | 1 | 41008083545 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636310 | Shop at ECS Tuning | ||||||
| For vehicles with Glass roof, electrical The following information is required when ordering: - Vehicle identification number only together with roof outer skin |
S403A=Yes |
|||||||||
| 01 | Body skeleton with chassis number | 1 | 41009629791 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Protective foil vehicle identif.number | 1 | 51719636310 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
