Outer panels for BMW 4 Series G23 Convertible 420i (2024)

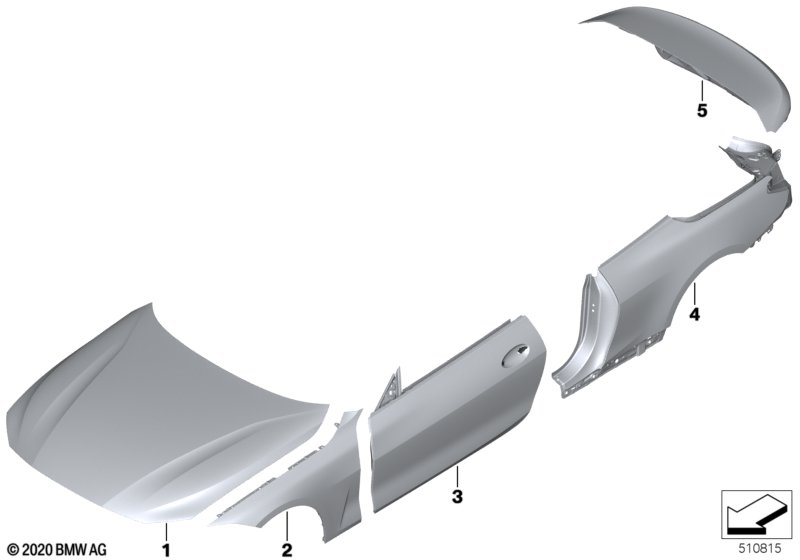

This Outer panels technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Aluminium engine hood | 1 | 41009466097 | Shop at ECS Tuning | ||||||
| 02 | Side panel, front left | 1 | 41009466095 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Abrasion protection film, left | 1 | 51659629155 | NoS | Shop at ECS Tuning | |||||
| 02 | Side panel, front right | 1 | 41009466096 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Abrasion protection film right | 1 | 51659629156 | NoS | Shop at ECS Tuning | |||||
| 03 | Door front left | 1 | 41009478691 | Shop at ECS Tuning | ||||||
| 03 | Door front right | 1 | 41009478692 | Shop at ECS Tuning | ||||||
| 04 | Left rear side panel | 1 | 41009852095 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 04 | Right rear side panel | 1 | 41009852096 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 20 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Punch rivet | N5 | 15 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 25 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Blind rivet N6 | 150 ST. | 10 | 83192158655 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Trunk lid sealing | 1 | 51769478549 | Shop at ECS Tuning | ||||||
| 05 | Trunk lid | 1 | 51249449239 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
