Cavity sealings for BMW 4 Series G23 Convertible LCI M440i (2025)

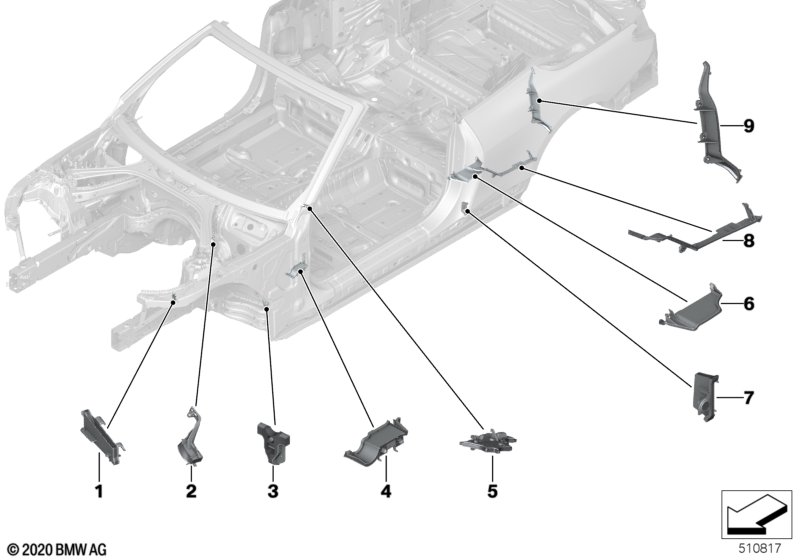

This Cavity sealings technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI M440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shap.part, carr.supp.inner w.arch, fr.le | 1 | 41007498289 | Shop at ECS Tuning | ||||||
| 01 | Shap.part, carr.supp.inner w.arch, fr.ri | 1 | 41007498290 | Shop at ECS Tuning | ||||||
| 02 | Shaped part support, left | 1 | 41007481829 | Shop at ECS Tuning | ||||||
| 02 | Shaped part support right | 1 | 41007481830 | Shop at ECS Tuning | ||||||
| 03 | Shaped part, bulkhead carrier support | 2 | 41007471751 | NoS | Shop at ECS Tuning | |||||
| 04 | Molded part column A, bottom int. left | 1 | 41007472593 | Shop at ECS Tuning | ||||||
| 04 | Molded part column A, bottom int. right | 1 | 41007472594 | Shop at ECS Tuning | ||||||
| 05 | Molded part column A, top interior | 2 | 41007472555 | Shop at ECS Tuning | ||||||
| 06 | Shaped part B-pillar inner front left | 1 | 41007472551 | Shop at ECS Tuning | ||||||
| 06 | Shaped part B-pillar inner front right | 1 | 41007472552 | Shop at ECS Tuning | ||||||
| 07 | Moulded part f entrance inside,rear,left | 1 | 41007435943 | Shop at ECS Tuning | ||||||
| 07 | Mould. part f entrance inside,rear,right | 1 | 41007435944 | Shop at ECS Tuning | ||||||
| 08 | Molded part, B-pillar, lower outer left | 1 | 41007497203 | Shop at ECS Tuning | ||||||
| 08 | Molded part, B-pillar, lower outer right | 1 | 41007497204 | Shop at ECS Tuning | ||||||
| 09 | Shaped part wheel well, rear left | 1 | 41007472557 | Shop at ECS Tuning | ||||||
| 09 | Molding, wheelhousing, rear right | 1 | 41007472558 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
