Body-side frame for BMW 4 Series G22 Coupé 430i (2024)

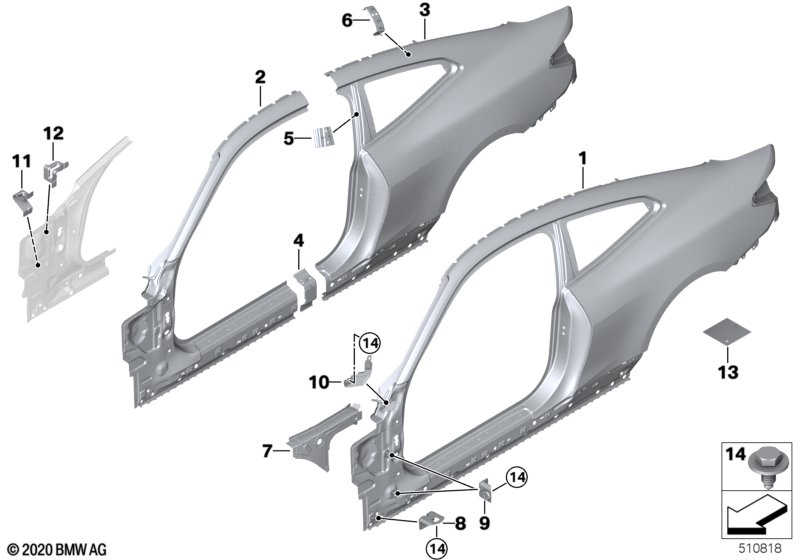

This Body-side frame technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body-side frame left | 1 | 41009879827 | Shop at ECS Tuning | ||||||
| 01 | Body-side frame right | 1 | 41009879828 | Shop at ECS Tuning | ||||||
| 02 | Left exterior column A | 1 | 41009879779 | Shop at ECS Tuning | ||||||
| 02 | Column A exterior right | 1 | 41009879780 | Shop at ECS Tuning | ||||||
| 03 | Left rear side panel | 1 | 41009879777 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 15 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Punch rivet | N5 | 25 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 25 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Trunk lid gasket | 1 | 51765A05999 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 8 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Plastic nut for coarse threaded pin | M6 | 8 | 07147336362 | Shop at ECS Tuning | |||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41009879783 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, B-pillar, left | 1 | 41009879787 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel, left | 1 | 41009879791 | Shop at ECS Tuning | ||||||
| 03 | Right rear side panel | 1 | 41009879778 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 15 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Punch rivet | N5 | 25 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 25 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Trunk lid gasket | 1 | 51765A05999 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 8 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Plastic nut for coarse threaded pin | M6 | 8 | 07147336362 | Shop at ECS Tuning | |||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41009879784 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, B-pillar, right | 1 | 41009879788 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel, right | 1 | 41009879792 | Shop at ECS Tuning | ||||||
| 04 | Reinforcement plate, rocker panel, left | 1 | 41009879791 | Shop at ECS Tuning | ||||||
| 04 | Reinforcement plate, rocker panel, right | 1 | 41009879792 | Shop at ECS Tuning | ||||||
| 05 | Reinforcement plate, B-pillar, left | 1 | 41009879787 | Shop at ECS Tuning | ||||||
| 05 | Reinforcement plate, B-pillar, right | 1 | 41009879788 | Shop at ECS Tuning | ||||||
| 06 | Reinforcement plate, C-pillar, left | 1 | 41009879783 | Shop at ECS Tuning | ||||||
| 06 | Reinforcement plate, C-pillar, right | 1 | 41009879784 | Shop at ECS Tuning | ||||||
| 07 | Extension, wheel housing strut left | 1 | 41007488093 | Shop at ECS Tuning | ||||||
| 07 | Extension, wheel housing strut right | 1 | 41007488094 | Shop at ECS Tuning | ||||||
| 08 | Bracket, side panel column A | 1 | 41009624949 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 2 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| 09 | Bracket side panel A-pillar center | 2 | 41008495775 | Shop at ECS Tuning | ||||||
| 10 | Side panel bracket, front left 4 | 1 | 41009449459 | Shop at ECS Tuning | ||||||
| 10 | Side panel bracket, front right 4 | 1 | 41009449460 | Shop at ECS Tuning | ||||||
| 11 | Holder, washer fluid reservoir, lower | 1 | 41007284407 | Shop at ECS Tuning | ||||||
| 12 | Bracket, wash water container top | 1 | 41007488123 | Shop at ECS Tuning | ||||||
| 13 | Reinforcement plate, universal | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| 14 | Hex bolt with washer | M6X12 | 3 | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
