Mounting parts for trunk floor panel for BMW 4 Series G23 Convertible LCI 430i (2025)

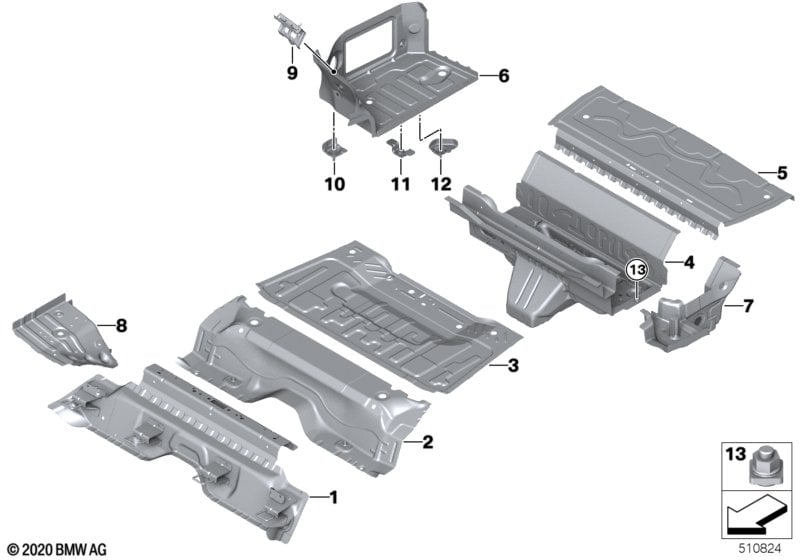

This Mounting parts for trunk floor panel technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front cross member for rear axle carrier | 1 | 41009879530 | NoS | Shop at ECS Tuning | |||||
| 02 | Floor pan cross member, rear | 1 | 41009879521 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Earth pin | M6X12 | 1 | 41248185432 | Shop at ECS Tuning | |||||
| 03 | Front trunk floor | 1 | 41009879531 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Earth pin | M6X12 | 1 | 41248185432 | Shop at ECS Tuning | |||||
| 04 | Luggage compartment pan | 1 | 41009879528 | NoS | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet nut, countersunk head | M8 | 1 | 07147206553 | Shop at ECS Tuning | |||||
| 05 | Luggage compartment floor, rear | 1 | 41009478471 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 15 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 4 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Blind rivet N6 | 150 ST. | 12 | 83192158655 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Coarse-thread stud | L=14,2MM | 5 | 07147133425 | Shop at ECS Tuning | |||||
| 06 | Luggage compartment floor, side, left | 1 | 41009626541 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| 06 | Luggage compartment floor side right | 1 | 41009626542 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Water outlet grommet | D=25MM | 1 | 07147374650 | Shop at ECS Tuning | |||||
| 07 | Mount, rear subframe, left | 1 | 41009448833 | NoS | Shop at ECS Tuning | |||||
| 07 | Mount, rear subframe, right | 1 | 41009448834 | NoS | Shop at ECS Tuning | |||||
| 08 | Support floor panel, rear, left | 1 | 41009879519 | NoS | Shop at ECS Tuning | |||||
| 08 | Support floor panel, rear, right | 1 | 41009879520 | NoS | Shop at ECS Tuning | |||||
| 09 | Bracket for B+ junction point | 1 | 41009448831 | NoS | Shop at ECS Tuning | |||||
| 10 | Mount SCR container, front | 2 | 41007488078 | Shop at ECS Tuning | ||||||
| 11 | Bracket activated Carbon container | M6 | 2 | 41007431655 | Shop at ECS Tuning | |||||
| 12 | Bracket SCR fluid tank, rear left | 1 | 41008495843 | Shop at ECS Tuning | ||||||
| 12 | Bracket SCR fluid tank, rear right rear | 1 | 41009630408 | Shop at ECS Tuning | ||||||
| 13 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
