Side panel/tail trim for BMW 4 Series G22 Coupé M440dX (2024)

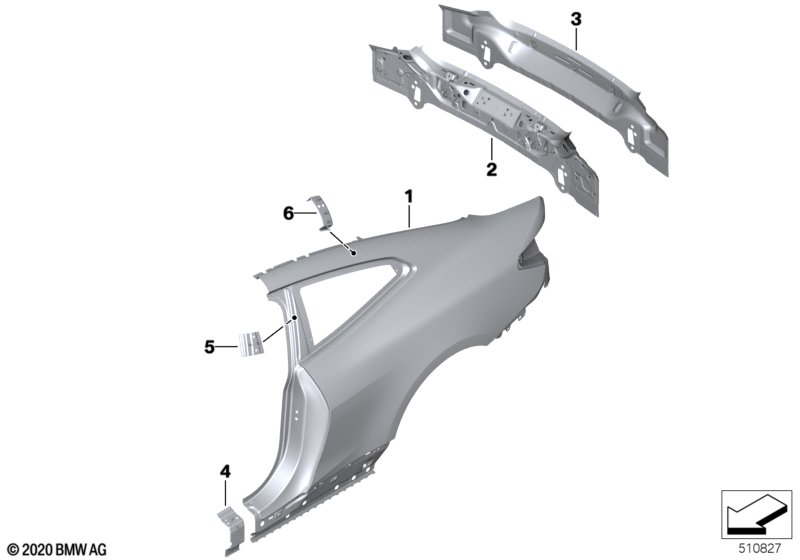

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé M440dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear side panel | 1 | 41009879777 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 15 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Punch rivet | N5 | 25 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 25 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Trunk lid gasket | 1 | 51765A05999 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 8 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Plastic nut for coarse threaded pin | M6 | 8 | 07147336362 | Shop at ECS Tuning | |||||
| -- | Reinforcement plate, C-pillar, left | 1 | 41009879783 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, B-pillar, left | 1 | 41009879787 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel, left | 1 | 41009879791 | Shop at ECS Tuning | ||||||
| 01 | Right rear side panel | 1 | 41009879778 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 15 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Cavity protection wax remover | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Punch rivet | N5 | 25 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 25 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Trunk lid gasket | 1 | 51765A05999 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Plastic capnut with washer | D=22MM | 8 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Plastic nut for coarse threaded pin | M6 | 8 | 07147336362 | Shop at ECS Tuning | |||||
| -- | Reinforcement plate, C-pillar, right | 1 | 41009879784 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, B-pillar, right | 1 | 41009879788 | Shop at ECS Tuning | ||||||
| -- | Reinforcement plate, rocker panel, right | 1 | 41009879792 | Shop at ECS Tuning | ||||||
| 02 | Complete tail trim | 1 | 41009879570 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Earth pin | M6X12 | 5 | 41248185432 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N1 | 2 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Blind rivet N3 | 40 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 5 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 12 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 8 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Trunk lid gasket | 1 | 51765A05999 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| 03 | Outer panel tail trim | 1 | 41009879571 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Earth pin | M6X12 | 5 | 41248185432 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 40 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 6 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N5 | 10 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 15 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Trunk lid gasket | 1 | 51765A05999 | Shop at ECS Tuning | ||||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| 04 | Reinforcement plate, rocker panel, left | 1 | 41009879791 | Shop at ECS Tuning | ||||||
| 04 | Reinforcement plate, rocker panel, right | 1 | 41009879792 | Shop at ECS Tuning | ||||||
| 05 | Reinforcement plate, B-pillar, left | 1 | 41009879787 | Shop at ECS Tuning | ||||||
| 05 | Reinforcement plate, B-pillar, right | 1 | 41009879788 | Shop at ECS Tuning | ||||||
| 06 | Reinforcement plate, C-pillar, left | 1 | 41009879783 | Shop at ECS Tuning | ||||||
| 06 | Reinforcement plate, C-pillar, right | 1 | 41009879784 | Shop at ECS Tuning | ||||||
